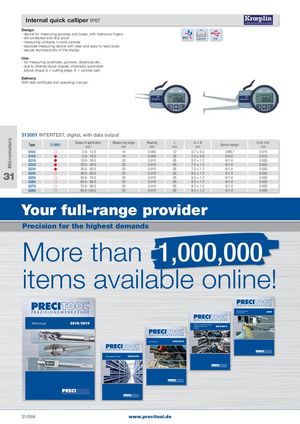

Micrometers 2018/2019Arbeitsschutz 2018/2019Arbeitsschutz 2019Mikrobearbeitung und Zubehör Internal quick calliper IP67 Design: - device for measuring grooves and bores, with tolerance fingers - dirt-protected and drip-proof IP67 Digimatic USB - measuring contacts in solid carbide - absolute measuring device with clear and easy to read scale - secure reproducibility of the display Use: - for measuring boreholes, grooves, distances etc. - due to diverse stylus shapes universally applicable (stylus shape S = cutting edge, K = carbide ball) Delivery: With test certificate and operating manual. 313001 INTERTEST, digital, with data output Type 313001 Scope of application Measuring range Readingmmmmmm Lmm A×Bmm Sensor design Error limitmm G102   2.5- 12.5 10 0.005 12 0.7 × 0.5 S/R0.1 0.015 G105   5.0- 15.0 10 0.005 35 2.3 × 0.8 K/0.6 0.015 G210  10.0- 30.0 20 0.010 85 5.2 × 1.2 K/1.0 0.030 G220  20.0- 40.0 20 0.010 85 7.0 × 1.2 K/1.0 0.030 G230  30.0- 50.0 20 0.010 85 7.0 × 1.2 K/1.0 0.030 31 G240G250  40.0- 60.050.0- 70.0 20 0.010 85 8.3 × 1.2 K/1.0200.010858.3 × 1.2K/1.0 0.0300.030 G260  60.0- 80.0 20 0.010 85 8.3 × 1.2 K/1.0 0.030 G270  70.0- 90.0 20 0.010 85 8.3 × 1.2 K/1.0 0.030 G280  80.0-100.0 20 0.010 85 8.3 × 1.2 K/1.0 0.030 Your full-range provider Precision for the highest demands More than 1,000,000 items available online! Mikrobearbeitungund Zubehör 2019 Elektro-/Druckluftwerkzeuge 2018/2019 ArSbteaittisosncähruetMz aschinen 2018/2019 Zubehör Elektro-/Druckluftwerkzeuge 2018/2019 ArSbteaittisosncähruetMz aschinen 22001188//22001199 Zubehör gültig vom 01.01.2019 bis 30.09.2019 Betriebseinrichtung 2018/2019 31/684 www.precitool.de
