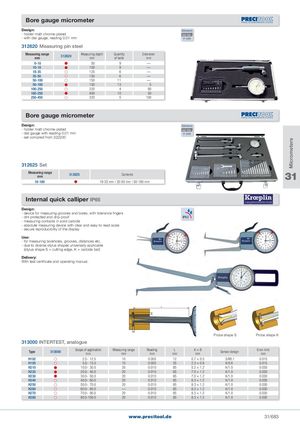

Micrometers Bore gauge micrometer Design: Delivered - holder matt chrome-plated - with dial gauge, reading 0.01 mm in case 312620 Measuring pin steel Measuring rangemm 312620 Measuring depthmm Quantityof bolts Extensionmm 6-10   50  9 — 10-18  100  9 — 18-35  125  6 — 35-50  150  6 — 50-100  150 11 — 50-160  150 13   5 100-250  220  4  80 160-250  400 10  50 250-450  320  5 100 Bore gauge micrometer Design: Delivered - holder matt chrome-plated - dial gauge with reading 0.01 mm in case - set compiled from 322200 312625 Set Measuring rangemm 312625 Contents 31 18-160  18-35 mm | 35-50 mm | 50-160 mm Internal quick calliper IP65 Design: - device for measuring grooves and bores, with tolerance fingers - dirt-protected and drip-proof IP65 - measuring contacts in solid carbide - absolute measuring device with clear and easy to read scale - secure reproducibility of the display Use: - for measuring boreholes, grooves, distances etc. - due to diverse stylus shapes universally applicable (stylus shape S = cutting edge, K = carbide ball) Delivery: With test certificate and operating manual. L A B Probe shape S Probe shape K 313000 INTERTEST, analogue Type 313000 Scope of application Measuring range Readingmmmmmm Lmm A×Bmm Sensor design Error limitmm H102   2.5- 12.5 10 0.005 12 0.7 × 0.5 S/R0.1 0.015 H105   5.0- 15.0 10 0.005 35 2.3 × 0.8 K/0.6 0.015 H210  10.0- 30.0 20 0.010 85 5.2 × 1.2 K/1.0 0.030 H220  20.0- 40.0 20 0.010 85 7.0 × 1.2 K/1.0 0.030 H230  30.0- 50.0 20 0.010 85 7.0 × 1.2 K/1.0 0.030 H240  40.0- 60.0 20 0.010 85 8.3 × 1.2 K/1.0 0.030 H250  50.0- 70.0 20 0.010 85 8.3 × 1.2 K/1.0 0.030 H260  60.0- 80.0 — 0.010 85 8.3 × 1.2 K/1.0 0.030 H270  70.0- 90.0 20 0.010 85 8.3 × 1.2 K/1.0 0.030 H280  80.0-100.0 20 0.010 85 8.3 × 1.2 K/1.0 0.030 www.precitool.de 31/683
