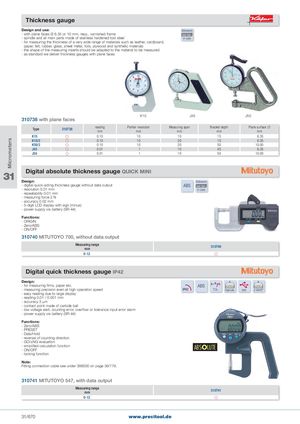

Общий каталог PRECITOOL - страница 675

Micrometers Thickness gauge Design and use: Delivered - with plane faces Ø 6.35 or 10 mm, resp., varnished frame - spindle and all main parts made of stainless hardened tool steel in case - for measuring the thickness of a very wide range of materials such as leather, cardboard, paper, felt, rubber, glass, sheet metal, foils, plywood and synthetic materials - the shape of the measuring inserts should be adapted to the material to be measured - as standard we deliver thickness gauges with plane faces K15 J45 J50 310738 with plane faces Type 310738 readingmm Pointer revolution Measuring span Bracket depth Plane surface xmmmmmmmm K15  0.10 10 10 15  6.35 K15/2  0.10 10 20 15  6.35 K50/2  0.10 10 20 50 10.00 J45  0.01  1 10 45  6.35 J50  0.01  1 10 50 10.00 31 Digital absolute thickness gauge QUICK MINI Design: Delivered - digital quick-acting thickness gauge without data output ABS - resolution 0.01 mm in case - repeatability 0.01 mm - measuring force 2 N - accuracy 0.02 mm - 5-digit LCD display with sign (minus) - power supply via battery (SR-44) Functions: - ORIGIN - Zero/ABS - ON/OFF 310740 MITUTOYO 700, without data output Measuring rangemm 310740 0-12  Digital quick thickness gauge IP42 Design: - for measuring films, paper etc. ABS - measuring precision even at high operation speed IP42 TOL Digimatic USB U-WAVE® - easy reading due to large display - reading 0.01 / 0.001 mm - accuracy 3 µm - contact point made of carbide ball - low voltage alert, counting error, overflow or tolerance input error alarm - power supply via battery (SR-44) Functions: - Zero/ABS - PRESET - Data/Hold - reversal of counting direction - GO/±NG evaluation - simplified calculation function- ON/OFF ABSOLUTE - locking function Note: Fitting connection cable see under 398000 on page 39/779. 310741 MITUTOYO 547, with data output Measuring rangemm 310741 0-12  31/670 www.precitool.de
