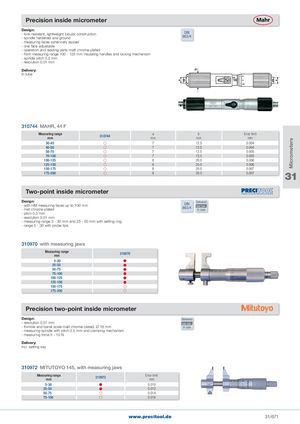

Общий каталог PRECITOOL - страница 676

Micrometers Precision inside micrometer Design:- kink-resistant, lightweight tubular construction- spindle hardened and ground DIN863/4 - measuring faces spherically lapped - one face adjustable - operation and reading parts matt chrome-plated - from measuring range 100 - 125 mm insulating handles and locking mechanism - spindle pitch 0.5 mm - resolution 0.01 mm Delivery: In tube 310744 MAHR, 44 F Measuring rangemm 310744 amm bmm Error limitmm 30-40  7 12.5 0.004 40-50  7 12.5 0.004 50-70  7 12.5 0.005 70-100  7 13.5 0.005 100-125  8 20.0 0.006 125-150  8 20.0 0.006 150-175  8 20.0 0.007 175-200  8 20.0 0.007 31 Two-point inside micrometer Design:- with HM measuring faces up to 100 mm- mat chrome-plated DIN Delivered863/4in case - pitch 0.5 mm - resolution 0.01 mm - measuring range 5 - 30 mm and 25 - 50 mm with setting ring - range 5 - 30 with probe tips 310970 with measuring jaws Measuring rangemm 310970 5-30  25-50  50-75  75-100  100-125  125-150  150-175  175-200  Precision two-point inside micrometer Design: Delivered - resolution 0.01 mm - thimble and barrel scale matt chrome-plated, Ø 18 mm in case - measuring spindle with pitch 0.5 mm and clamping mechanism - measuring force 5 - 10 N Delivery: Incl. setting key 310972 MITUTOYO 145, with measuring jaws Measuring rangemm 310972 Error limitmm 5-30  0.010 25-50  0.012 50-75  0.014 75-100  0.016 www.precitool.de 31/671
