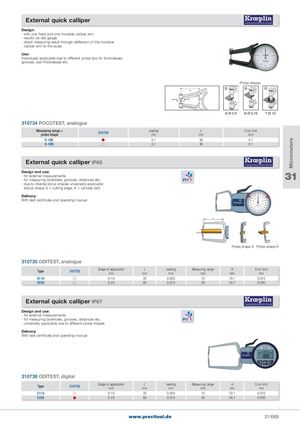

Micrometers External quick calliper Design: - with one fixed and one movable calliper arm - results via dial gauge - direct measuring result through deflection of the movable calliper arm to the scale Use: Individually applicable due to different probe tips for thicknesses, grooves, wall thicknesses etc. Probe shapes 310734 POCOTEST, analogue Measuring range +probe shape 310734 reading Lmmmm Error limitmm 0-10K  0.1 36 0.1 0-10N  0.1 36 0.1 External quick calliper IP65 Design and use:- for external measurements- for measuring boreholes, grooves, distances etc. IP65 31 - due to diverse stylus shapes universally applicable (stylus shape S = cutting edge, K = carbide ball) Delivery: With test certificate and operating manual L A Probe shape S Probe shape K 310735 ODITEST, analogue Type 310735 Scope of applicationmm Lmm reading Measuring range Ammmmmm Error limitmm D110  0-10 35 0.005 10 19.1 0.015 D220  0-20 85 0.010 20 24.7 0.030 External quick calliper IP67 Design and use: - for external measurements - for measuring boreholes, grooves, distances etc. IP67 - universally applicable due to different probe shapes Delivery: With test certificate and operating manual 310736 ODITEST, digital Type 310736 Scope of applicationmm Lmm reading Measuring range Ammmmmm Error limitmm C110  0-10 35 0.005 10 19.1 0.015 C220  0-20 85 0.010 20 24.7 0.030 www.precitool.de 31/669
