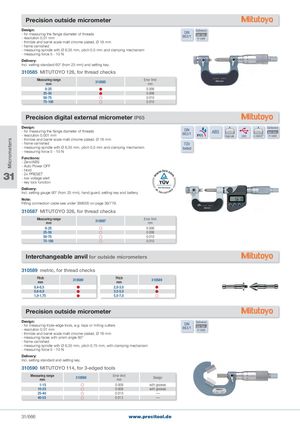

Micrometers w 0 I m Precision outside micrometer Design:- for measuring the flange diameter of threads DIN Delivered - resolution 0.01 mm 863/1 in case - thimble and barrel scale matt chrome-plated, Ø 18 mm - frame varnished - measuring spindle with Ø 6.35 mm, pitch 0.5 mm and clamping mechanism - measuring force 5 - 10 N Delivery: Incl. setting standard 60° (from 25 mm) and setting key. 310585 MITUTOYO 126, for thread checks Measuring rangemm 310585 Error limitmm 0-25  0.008 25-50  0.008 50-75  0.010 75-100  0.010 Precision digital external micrometer IP65 Design:- for measuring the flange diameter of threads- resolution 0.001 mm DIN863/1IP65 DeliveredABSDigimaticUSBU-WAVE®in case - thimble and barrel scale matt chrome-plated, Ø 18 mm - frame varnished TÜV - measuring spindle with Ø 6.35 mm, pitch 0.5 mm and clamping mechanism tested - measuring force 5 - 10 N Functions: - Zero/ABS - Auto Power OFF - Hold31- 2× PRESET- low voltage alert ww.tuv.co - key lock function Delivery:Incl. setting gauge 60° (from 25 mm), hand guard, setting key and battery. TÜV RheinlandD:30112 0740 Note: Fitting connection cable see under 398005 on page 39/779. 310587 MITUTOYO 326, for thread checks Measuring rangemm 310587 Error limitmm 0-25  0.008 25-50  0.008 50-75  0.010 75-100  0.010 Interchangeable anvil for outside micrometers 310589 metric, for thread checks Pitchmm 310589 Pitchmm 310589 0,4-0,5  2,0-3,0  0,6-0,9  3,5-5,0  1,0-1,75  5,5-7,0  Precision outside micrometer Design:- for measuring triple-edge tools, e.g. taps or milling cutters- resolution 0.01 mm DIN Delivered863/1in case - thimble and barrel scale matt chrome-plated, Ø 18 mm - measuring faces with prism angle 60° - frame varnished - measuring spindle with Ø 6.35 mm, pitch 0.75 mm, with clamping mechanism - measuring force 5 - 10 N Delivery: Incl. setting standard and setting key. 310590 MITUTOYO 114, for 3-edged tools Measuring rangemm 310590 Error limitmm Design 1-15  0.008 with grooves 10-25  0.008 with grooves 25-40  0.010 — 40-55  0.012 — 31/666 www.precitool.de
