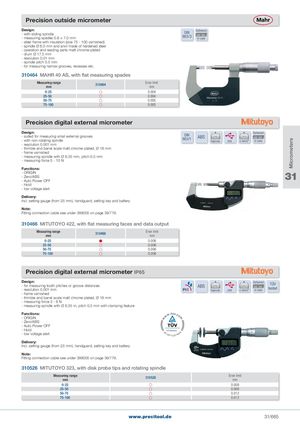

Общий каталог PRECITOOL - страница 670

w 0 Micrometers Precision outside micrometer Design:- with sliding spindle DIN Delivered - measuring spades 0.8 × 7.0 mm 863/3 in case - steel frame with insulation (size 75 - 100 varnished) - spindle Ø 8.0 mm and anvil made of hardened steel - operation and reading parts matt chrome-plated - drum Ø 17.5 mm - resolution 0.01 mm - spindle pitch 0.5 mm - for measuring narrow grooves, recesses etc. 310464 MAHR 40 AS, with flat measuring spades Measuring rangemm 310464 Error limitmm 0-25  0.004 25-50  0.004 50-75  0.005 75-100  0.005 Precision digital external micrometer Design:- suited for measuring small external grooves- with non-rotating spindle DIN863/1ABS Digimatic USB DeliveredU-WAVE®in case - resolution 0.001 mm - thimble and barrel scale matt chrome-plated, Ø 18 mm - frame varnished - measuring spindle with Ø 6.35 mm, pitch 0.5 mm - measuring force 5 - 10 N Functions: - ORIGIN- Zero/ABS 31 - Auto Power OFF - Hold - low voltage alert Delivery: Incl. setting gauge (from 25 mm), handguard, setting key and battery Note: Fitting connection cable see under 398005 on page 39/779. 310466 MITUTOYO 422, with flat measuring faces and data output Measuring rangemm 310466 Error limitmm 0-25  0.006 25-50  0.006 50-75  0.006 75-100  0.008 Precision digital external micrometer IP65 Design:- for measuring tooth pitches or groove distances- resolution 0.001 mm IP65 ABS Digimatic USB Delivered TÜVU-WAVE®in casetested - frame varnished - thimble and barrel scale matt chrome-plated, Ø 18 mm - measuring force 3 - 8 N - measuring spindle with Ø 6.35 m, pitch 0.5 mm with clamping feature Functions:- ORIGIN w w . tu v. co - Zero/ABS - Auto Power OFF - Hold TÜV Rheinland - low voltage alert D:30112 0 740 Delivery: Incl. setting gauge (from 25 mm), handguard, setting key and battery Note: Fitting connection cable see under 398005 on page 39/779. 310526 MITUTOYO 323, with disk probe tips and rotating spindle Measuring rangemm 310526 Error limitmm 0-25  0.008 25-50  0.008 50-75  0.012 75-100  0.012 www.precitool.de 31/665 I m
