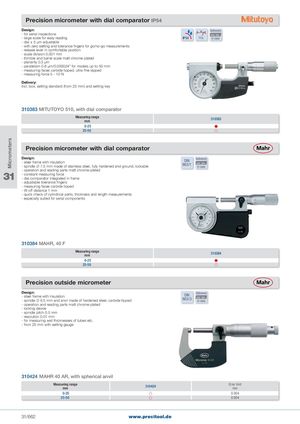

Micrometers Precision micrometer with dial comparator IP54 Design: Delivered - for serial inspections - large scale for easy reading IP54 TOL in case - dial ± 5 µm adjustable - with zero setting and tolerance fingers for go/no-go measurements - release lever in comfortable position - scale division 0.001 mm - thimble and barrel scale matt chrome-plated - planarity 0.3 µm - parallelism 0.6 µm/0.000024" for models up to 50 mm - measuring faces carbide tipped, ultra-fine lapped - measuring force 5 - 10 N Delivery: Incl. box, setting standard (from 25 mm) and setting key 310383 MITUTOYO 510, with dial comparator Measuring rangemm 310383 0-25  25-50  Precision micrometer with dial comparator Design:- steel frame with insulation- spindle  7.5 mm made of stainless steel, fully hardened and ground, lockableDINDelivered863/1in case - operation and reading parts matt chrome-plated 31 - constant measuring force- dial comparator integrated in frame - adjustable tolerance fingers - measuring faces carbide tipped - lift-off distance 1 mm - quick check of cylindrical parts, thickness and length measurements - especially suited for serial components 310384 MAHR, 40 F Measuring rangemm 310384 0-25  25-50  Precision outside micrometer Design:- steel frame with insulation- spindle  6.5 mm and anvil made of hardened steel, carbide-tippedDIN Delivered863/3in case - operation and reading parts matt chrome-plated - locking device - spindle pitch 0.5 mm - resolution 0.01 mm - for measuring wall thicknesses of tubes etc. - from 25 mm with setting gauge 310424 MAHR 40 AR, with spherical anvil Measuring rangemm 310424 Error limitmm 0-25  0.004 25-50  0.004 31/662 www.precitool.de
