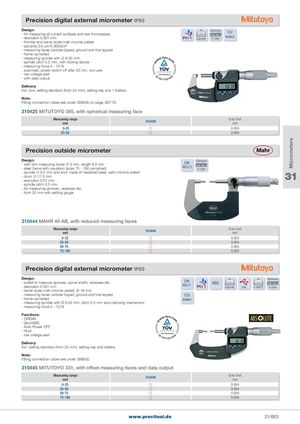

Общий каталог PRECITOOL - страница 668

w w 0 0 Micrometers I I m m Precision digital external micrometer IP65 Design:- for measuring all curved surfaces and wall thicknesses Delivered TÜV - resolution 0.001 mm IP65 Digimatic in case tested - thimble and barrel scale matt chrome-plated - planarity 0.6 µm/0.000024" - measuring faces carbide-tipped, ground and fine lapped - frame varnished - measuring spindle with  6.35 mm- spindle pitch 0.5 mm, with locking device ww.tuv.co - measuring force 5 - 10 N - automatic power switch-off after 20 min. non-use - low voltage alert TÜV Rheinland - with data output D:30112 0740 Delivery: Incl. box, setting standard (from 25 mm), setting key and 1 battery. Note: Fitting connection cable see under 398005 on page 39/779. 310425 MITUTOYO 395, with spherical measuring face Measuring rangemm 310425 Error limitmm 0-25  0.004 25-50  0.004 Precision outside micrometer Design:- with slim measuring faces  3 mm, length 8.5 mm- steel frame with insulation (sizes 75 - 100 varnished) DIN Delivered863/3in case - spindle  6.5 mm and anvil made of hardened steel, satin chrome plated- drum  17.5 mm 31 - resolution 0.01 mm - spindle pitch 0.5 mm - for measuring grooves, recesses etc. - from 25 mm with setting gauge 310444 MAHR 40 AB, with reduced measuring faces Measuring rangemm 310444 Error limitmm 0-25  0.004 25-50  0.004 50-75  0.005 75-100  0.005 Precision digital external micrometer IP65 Design:- suited to measure grooves, spline shafts, recesses etc.- resolution 0.001 mm DIN863/1IP65 DeliveredABSDigimaticUSBU-WAVE®in case - barrel scale matt chrome-plated, Ø 18 mm - measuring faces carbide-tipped, ground and fine lapped TÜV - frame varnished tested - measuring spindle with Ø 6.35 mm, pitch 0.5 mm and clamping mechanism - measuring force 5 - 10 N Functions:- ORIGIN ww.tuv.co ABSOLUTE - Zero/ABS - Auto Power OFF - Hold - low voltage alert TÜV RheinlandD:30112 0740 Delivery: Incl. setting standard (from 25 mm), setting key and battery. Note: Fitting connection cable see under 398005. 310445 MITUTOYO 331, with offset measuring faces and data output Measuring rangemm 310445 Error limitmm 0-25  0.004 25-50  0.004 50-75  0.004 75-100  0.006 www.precitool.de 31/663
