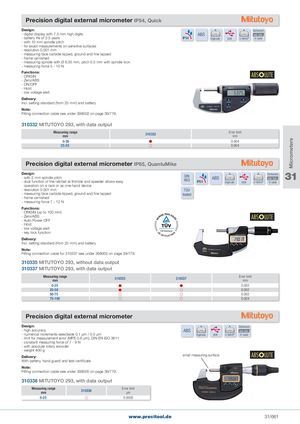

Общий каталог PRECITOOL - страница 666

w 0 Micrometers I m Precision digital external micrometer IP54, Quick Design: Delivered - digital display with 7.5 mm high digits ABS - battery life of 3.5 years IP54 Digimatic USB U-WAVE® in case - with 10 mm spindle pitch - for exact measurements on sensitive surfaces - resolution 0.001 mm - measuring face carbide-tipped, ground and fine lapped - frame varnished - measuring spindle with Ø 6.35 mm, pitch 0.5 mm with spindle lock - measuring force 5 - 10 N Functions:- ORIGIN ABSOLUTE - Zero/ABS - ON/OFF - Hold - low voltage alert Delivery: Incl. setting standard (from 25 mm) and battery Note: Fitting connection cable see under 398002 on page 39/779. 310332 MITUTOYO 293, with data output Measuring rangemm 310332 Error limitmm 0-30  0.004 25-55  0.004 Precision digital external micrometer IP65, QuantuMike Design:- with 2 mm spindle pitch- dual function of the ratchet at thimble and speeder allows easy DIN863 IP65 ABS Delivered 31DigimaticUSBU-WAVE®in case operation on a rack or as one-hand device - resolution 0.001 mm TÜV - measuring face carbide-tipped, ground and fine lapped tested - frame varnished - measuring force 7 - 12 N Functions: - ORIGIN (up to 100 mm)- Zero/ABS ww.tuv.co ABSOLUTE - Auto Power OFF - Hold - low voltage alert - key lock function TÜV RheinlandD:30112 0740 Delivery: Incl. setting standard (from 25 mm) and battery Note: Fitting connection cable for 310337 see under 398005 on page 39/779. 310335 MITUTOYO 293, without data output 310337 MITUTOYO 293, with data output Measuring rangemm 310335 310337 Error limitmm 0-25   0.002 25-50   0.002 50-75   0.002 75-100   0.004 Precision digital external micrometer Design: Delivered - high accuracy ABS - numerical increments selectable 0.1 µm / 0.5 µm Digimatic USB U-WAVE® in case - limit for measurement error (MPE 0.6 µm), DIN EN ISO 3611 - constant measuring force of 7 - 9 N - with absolute rotary encoder - weight 400 g Delivery: small measuring surface ABSOLUTE With battery, hand guard and test certificate Note: Fitting connection cable see under 398005 on page 39/779. 310338 MITUTOYO 293, with data output Measuring rangemm 310338 Error limitµm 0-25  0.0005 www.precitool.de 31/661
