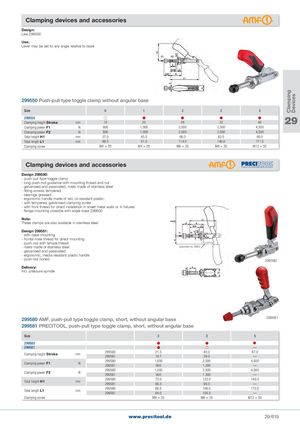

Clamping Devices Clamping devices and accessories Design: Like 299500 Use: Lever may be set to any angle relative to base 299550 Push-pull type toggle clamp without angular base Size 0 1 2 3 5 299550 Clamping height Stroke mm16 20 26 32 40 29 Clamping power F1  N 800 1,000 2,000 2,500 4,500 Clamping power F2  N 800 1,000 2,000 2,500 4,500 Total height H1  mm 37.0 45.5 66.0 82.5 99.0 Total length L1  mm 66.5 91.0 114.0 140.0 171.5 Clamping screw M4 × 20 M4 × 20 M6 × 25 M8 × 35 M12 × 50 Clamping devices and accessories Design 299580: - push-pull type toggle clamp - long push-rod guidance with mounting thread and nut - galvanised and passivated, rivets made of stainless steel - fitting screws tempered - bearings greased - ergonomic handle made of red, oil-resistant plastic- - with tempered, galvanised clamping screw - with front thread for direct installation in sheet metal walls or in fixtures - flange mounting possible with angle base 299600 Note: These clamps are also available in stainless steel Design 299581: - with base mounting - frontal male thread for direct mounting - push-rod with female thread - rivets made of stainless steel optionally no. 6843 - galvanised and passivated - ergonomic, media resistant plastic handle - push-rod honed 299580 Delivery: Incl. pressure spindle 299580 AMF, push-pull type toggle clamp, short, without angular base 299581 299581 PRECITOOL, push-pull type toggle clamp, short, without angular base Size 2 3 5 299580    299581   — Clamping height Stroke  mm 299580299581 21.519.7 40.039.0 67.0— Clamping power F1  N 299580299581 1,000900 2,5001,300 4,000— Clamping power F2  N 299580299581 1,000900 2,5001.300 4,000— Total height H1  mm 299580299581 73.066.3 123.0 149.090.5— Total length L1  mm 299580299581 68.564.0 108.0 175.0104.0— Clamping screw M6 × 25 M8 × 35 M12 × 50 www.precitool.de 29/619
