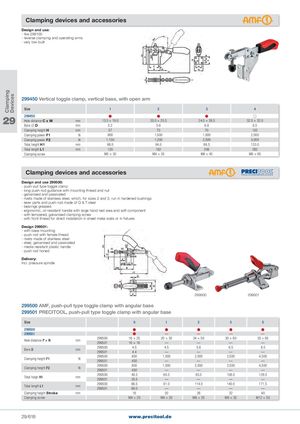

Clamping Devices Clamping devices and accessories Design and use: - like 299100 - reverse clamping and operating arms - very low-built 299450 Vertical toggle clamp, vertical base, with open arm Size 1 2 3 4 29 299450 Hole distance C x M mm 13.5 × 19.0 20.0 × 25.5 24.0 × 28.5 32.0 × 32.0 Bore x D mm 5.2 5.6 6.8 8.5 Clamping height H mm 57 73 70 102 Clamping power F1 N 800 1,000 1,800 2,000 Clamping power F2 N 1,100 1,200 2,500 3,000 Total height H1 mm 68.0 94.0 86.5 133.0 Total length L1 mm 120 162 206 282 Clamping screw M5 × 30 M6 × 35 M8 × 45 M8 × 65 Clamping devices and accessories Design and use 299500: - push-pull type toggle clamp - long push-rod guidance with mounting thread and nut - galvanised and passivated - rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bushings - lever parts and push-rod made of Q & T steel - bearings greased - ergonomic, oil-resistant handle with large hand rest area and soft component - with tempered, galvanised clamping screw - with front thread for direct installation in sheet metal walls or in fixtures Design 299501: - with base mounting - push-rod with female thread - rivets made of stainless steel - steel, galvanised and passivated - media resistant plastic handle - push-rod honed Delivery: Incl. pressure spindle 299500 299501 299500 AMF, push-pull type toggle clamp with angular base 299501 PRECITOOL, push-pull type toggle clamp with angular base Size 0 1 2 3 5 299500 299501 — — — — Hole distance P × Nmm 299500299501 16 × 2516 × 16 20 × 30— 34 × 50— 30 × 60— 35 × 65— Bore Dmm 299500299501 4.54.4 4.5— 5.6— 6.5— 8.5— Clamping height F1N 299500299501 800450 1,000 2,000 2,500 4,500———— Clamping height F2N 299500299501 800450 1,000 2,000 2,500 4,500———— Total heigh H1mm 299500299501 49.335.0 60.5— 85.5 108.0 129.5——— Total length L1mm 299500299501 66.568.0 91.0 114.0 140.0 171.5———— Clamping height Strokemm 16 20 26 32 40 Clamping screw M4 × 20 M4 × 20 M6 × 25 M8 × 35 M12 × 50 29/618 www.precitool.de
