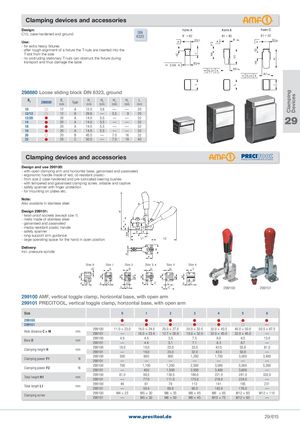

Clamping Devices Clamping devices and accessories Design:C15, case-hardened and ground DIN6323 Use: - for extra heavy fixtures - after rough alignment of a fixture the T-nuts are inserted into the T-slot from the side - no protruding stationary T-nuts can obstruct the fixture during transport and thus damage the table 298880 Loose sliding block DIN 6323, ground B2 298880 B1mm Type H1mm H2 H3 H4 Lmmmmmmmm 10  12 A 12.0 3.6 — — 20 12/12  12 B 28.6 — 5.5  9 20 12/20  20 A 14.0 5.5 — — 321420A14.05.5——32 29 16  20 A 14.0 5.5 — — 32 18  20 A 14.0 5.5 — — 32 20  20 B 45.5 — 7.0 16 32 22  20 C 50.5 — 7.0 18 40 Clamping devices and accessories Design and use 299100: - with open clamping arm and horizontal base, galvanised and passivated - ergonomic handle made of red, oil-resistant plastic- - from size 2 case-hardened and pre-lubricated bearing bushes - with tempered and galvanised clamping screw, slidable and captive - safety spanner with finger protection - for mounting on plates etc. Note: Also available in stainless steel Design 299101: - twist-proof sockets (except size 1) - rivets made of stainless steel - galvanised and passivated - media resistant plastic handle - safety spanner - long support arm guidance - large operating space for the hand in open position Delivery: Incl. pressure spindle Size Size Size Size Size Size 299100 299101 299100 AMF, vertical toggle clamp, horizontal base, with open arm 299101 PRECITOOL, vertical toggle clamp, horizontal base, with open arm Size 0 1 2 3 4 5 6 299100        299101 —      — Hole distance C × Mmm 299100 11.0 × 23,0 18.0 × 24.0 25.0 × 27.0 20.0 × 32.5 32.0 × 43.5 45.0 × 50.0 50.5 × 67.5299101—16.0 × 23.412.7 × 26.919.0 × 32.032.0 × 45.032.0 × 45.0— Bore Dmm 299100299101 4.5— 4.54.4 5,55,1 7.57.1 8.68.3 8.58.7 13.0— Clamping height Hmm 299100299101 18.0— 19.019.0 23.023.0 33.032.0 42.542.0 55.850.8 81.0— Clamping power F1N 299100299101 500— 600— 800 1,200 1,700 3,000 3,400————— Clamping power F2N 299100299101 700— 1,100 1,200 2,500 3,000 5,000 5,5004501,5002,5003,4003,600— Total height H1mm 299100299101 81.0— 98,5 139.5 186.0 221.0 281.0 333.077.0111.0175.0218.0224.0— Total length L1mm 299100299101 49— 61 78 112 141 195 23150.469.990.0143.0176.0— Clamping screw 299100 M4 × 25 M5 × 30 M6 × 35 M8 × 45 M8  × 65 M12 × 80 M12 × 110299101—M5 × 30M6 × 50M8 × 45M10 × 75M12 × 80— www.precitool.de 29/615
