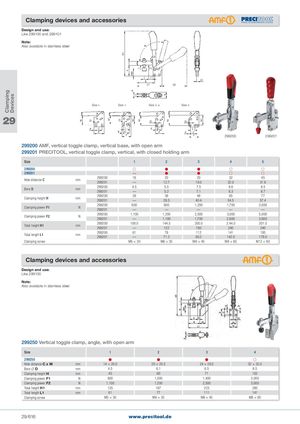

Clamping Devices Clamping devices and accessories Design and use: Like 299100 and 299101 Note: Also available in stainless steel Size Size Size Size 29 299200 299201 299200 AMF, vertical toggle clamp, vertical base, with open arm 299201 PRECITOOL, vertical toggle clamp, vertical, with closed holding arm Size 1 2 3 4 5 299200      299201 —     Hole distance Cmm 299200299201 16— 20 20 32 4512.719.032.031.8 Bore Dmm 299200299201 4.5— 5.55.2 7.57.1 8.68.3 8.58.7 Clamping height Hmm 299200299201 29— 38 48 65 7728.540.454.557.4 Clamping power F1N 299200299201 600— 800 1,200 1,700 3,000———— Clamping power F2N 299200299201 1,100— 1,2001,100 2,5001,700 3,0002,800 5,0003,600 Total height H1mm 299200299201 109.0— 144.5122 200.0190 2.44.0240 301.0240 Total length L1mm 299200299201 61— 78 112 141 19571.290.2142.0179.0 Clamping screw M5 × 30 M6 × 35 M8 × 45 M8 × 65 M12 × 80 Clamping devices and accessories Design and use: Like 299100 Note: Also available in stainless steel 299250 Vertical toggle clamp, angle, with open arm Size 1 2 3 4 299250     Hole distance C x M  mm 14 × 20.0 20 × 25.5 24 × 28.5 32 × 32.0 Bore x D  mm 4.5 6.1 6.5 8.5 Clamping height H  mm 45 60 71 102 Clamping power F1  N 800 1,000 1,400 2,000 Clamping power F2  N 1,100 1,200 2,500 3,000 Total height H1  mm 125 167 223 280 Total length L1  mm 61 77 111 141 Clamping screw M5 × 30 M6 × 35 M8 × 45 M8 × 65 29/616 www.precitool.de
