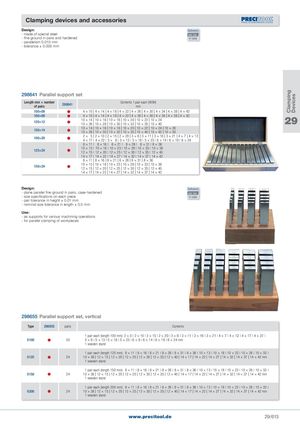

Clamping Devices Clamping devices and accessories Design: Delivered - made of special steel - fine ground in pairs and hardened in case - parallelism 0.010 mm - tolerance ± 0.005 mm 298641 Parallel support set Length mm × numberof pairs298641 Contents 1 pair each (W3H)mm 100×09    4 × 10 | 4 × 14 | 4 × 18 | 4 × 22 | 4 × 26 | 4 × 30 | 4 × 34 | 4 × 38 | 4 × 42 160×09    4 × 10 | 4 × 14 | 4 × 18 | 4 × 22 | 4 × 26 | 4 × 30 | 4 × 34 | 4 × 38 | 4 × 42120×1210 × 14 | 10 × 16 | 10 × 18 | 10 × 20 | 10 × 22 | 10 × 2410 × 26 | 10 × 28 | 10 × 30 | 10 × 32 | 10 × 35 | 10 × 4029 150×14  10 × 14 | 10 × 16 | 10 × 18 | 10 × 20 | 10 × 22 | 10 × 24 | 10 × 2610 × 28 | 10 × 30 | 10 × 32 | 10 × 35 | 10 × 40 | 10 × 45 | 10 × 50 100×20    2 ×   5 | 2 × 10 | 2 × 15 | 2 × 20 | 3 × 6 | 3 × 11 | 3 × 16 | 3 × 21 | 4 × 7 | 4 × 12  4 × 17 | 4 × 22 | 5 ×   8 | 5 × 13 | 5 × 18 | 5 × 23 | 6 × 14 | 6 × 19 | 6 × 24   8 × 11 |   8 × 16 |   8 × 21 |   8 × 26 |   8 × 31 | 8 × 36 125×24  10 × 13 | 10 × 18 | 10 × 23 | 10 × 28 | 10 × 33 | 10 × 3812 × 15 | 12 × 20 | 12 × 25 | 12 × 30 | 12 × 35 | 12 × 40 14 × 17 | 14 × 22 | 14 × 27 | 14 × 32 | 14 × 37 | 14 × 42   8 × 11 | 8 × 16 | 8 × 21 | 8 × 26 | 8 × 31 | 8 × 36 150×24  10 × 13 | 10 × 18 | 10 × 23 | 10 × 28 | 10 × 33 | 10 × 3812 × 15 | 12 × 20 | 12 × 25 | 12 × 30 | 12 × 35 | 12 × 40 14 × 17 | 14 × 22 | 14 × 27 | 14 × 32 | 14 × 37 | 14 × 42 Design: Delivered - plane parallel fine ground in pairs, case-hardened - size specifications on each piece in case - pair tolerance in height ± 0.01 mm - nominal size tolerance in length ± 0.5 mm Use: - as supports for various machining operations - for parallel clamping of workpieces 298655 Parallel support set, vertical Type 298655 parts Contents   1 pair each (length 100 mm): 2 × 5 | 2 × 10 | 2 × 15 | 2 × 20 | 3 × 6 | 3 × 11 | 3 × 16 | 3 × 21 | 4 × 7 | 4 × 12 | 4 × 17 | 4 × 22 | 0100  20   5 × 8 | 5 × 13 | 5 × 18 | 5 × 23 | 6 × 9 | 6 × 14 | 6 × 19 | 6 × 24 mm   1 wooden stand  1 pair each (length 125 mm): 8 × 11 |8× 16 | 8 × 21 |8× 26 | 8 × 31 |8× 36 | 10 × 13 | 10 × 18 | 10 × 23 | 10 × 28 | 10 × 33 | 0125  24 10 × 38 | 12 × 15 | 12 × 20 | 12 × 25 | 12 × 30 | 12 × 35 | 12 × 40 | 14 × 17 | 14 × 22 | 14 × 27 | 14 × 32 | 14 × 37 | 14 × 42 mm   1 wooden stand  1 pair each (length 150 mm): 8 × 11 |8× 16 | 8 × 21 |8× 26 | 8 × 31 |8× 36 | 10 × 13 | 10 × 18 | 10 × 23 | 10 × 28 | 10 × 33 | 0150  24 10 × 38 | 12 × 15 | 12 × 20 | 12 × 25 | 12 × 30 | 12 × 35 | 12 × 40 | 14 × 17 | 14 × 22 | 14 × 27 | 14 × 32 | 14 × 37 | 14 × 42 mm   1 wooden stand  1 pair each (length 200 mm): 8 × 11 |8× 16 | 8 × 21 |8× 26 | 8 × 31 |8× 36 | 10 × 13 | 10 × 18 | 10 × 23 | 10 × 28 | 10 × 33 | 0200  24 10 × 38 | 12 × 15 | 12 × 20 | 12 × 25 | 12 × 30 | 12 × 35 | 12 × 40 | 14 × 17 | 14 × 22 | 14 × 27 | 14 × 32 | 14 × 37 | 14 × 42 mm   1 wooden stand www.precitool.de 29/613
