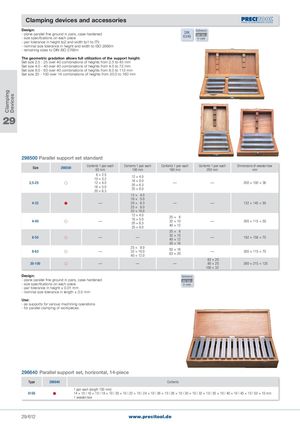

Общий каталог PRECITOOL - страница 617

Clamping Devices Clamping devices and accessories Design:- plane parallel fine ground in pairs, case-hardened DIN Delivered - size specifications on each piece 6346 in case - pair tolerance in height tp2 and width tp1 to IT5 - nominal size tolerance in height and width to ISO 2868m - remaining sizes to DIN ISO 2768m The geometric gradation allows full utilization of the support height: Set size 2.5 - 25 over 40 combinations of heights from 2.5 to 45 mm Set size 4.0 - 40 over 40 combinations of heights from 4.0 to 72 mm Set size 8.0 - 63 over 40 combinations of heights from 8.0 to 113 mm Set size 20 - 100 over 14 combinations of heights from 20.0 to 180 mm 29 298500 Parallel support set standard Size 298500 Contents 1 pair each Contents 1 pair each Contents 1 pair each Contents 1 pair each Dimensions of wooden box63 mm100 mm160 mm250 mmmm 2,5-25    8 × 2.510 × 3.212 × 4.016 × 5.020 × 6.312 × 4.016 × 5.020 × 6.325 × 8.0— — 200 × 100 × 36 12 ×   4.0 16 ×   5.0 4-32  — 20 ×   6.3 — — 132 × 145 × 50 25 ×   8.0 32 × 10.0 4-40  — 12 × 4.016 × 5.020 × 6.325 × 8.025 ×   832 × 1040 × 12 — 305 × 115 × 50 25 ×   8 8-50  — — 32 × 1040 × 12 — 192 × 158 × 75 50 × 16 8-63  — 25 ×   8.032 × 10.040 × 12.050 × 1663 × 20 — 305 × 115 × 70   63 × 20 20-100  — — —   80 × 25   280 × 215 × 125 100 × 32 Design: Delivered - plane parallel fine ground in pairs, case-hardened - size specifications on each piece in case - pair tolerance in height ± 0.01 mm - nominal size tolerance in length ± 0.5 mm Use: - as supports for various machining operations - for parallel clamping of workpieces 298640 Parallel support set, horizontal, 14-piece Type 298640 Contents 1 pair each (length 150 mm): 0150  14 × 10 | 16 × 10 | 18 × 10 | 20 × 10 | 22 × 10 | 24 × 10 | 26 × 10 | 28 × 10 | 30 × 10 | 32 × 10 | 35 × 10 | 40 × 10 | 45 × 10 | 50 × 10 mm 1 wooden box 29/612 www.precitool.de
