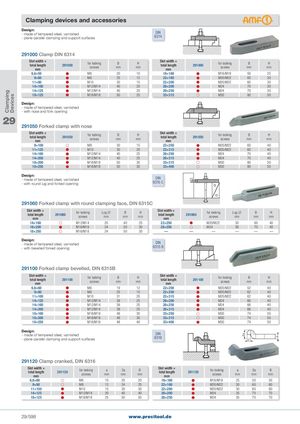

Clamping Devices Clamping devices and accessories Design:- made of tempered steel, varnished- plane-parallel clamping and support surfacesDIN6314 291000 Clamp DIN 6314 Slot width ×total lengthmm291000 for lockingscrews Bmm Hmm Slot width ×total lengthmm291000 for locking B Hscrewsmmmm 6,6×50  M6 20 10 18×160  M16/M18 50 25 9×60  M8 25 12 22×160  M20/M22 60 30 11×80  M10 30 15 22×200  M20/M22 60 30 14×100  M12/M14 40 20 26×200  M24 70 30 14×125  M12/M14 40 20 26×250  M24 70 35 18×125  M16/M18 50 25 33×315  M30 80 50 Design: - made of tempered steel, varnished - with nose and fork opening 29 291050 Forked clamp with nose Slot width ×total lengthmm291050 for lockingscrews Bmm Hmm Slot width ×total lengthmm291050 for locking B Hscrewsmmmm 9×100  M8 30 15 22×250  M20/M22 60 40 11×125  M10 30 20 22×315  M20/M22 60 40 14×160  M12/M14 40 25 26×250  M24 70 40 14×200  M12/M14 40 25 26×315  M24 70 40 18×200  M16/M18 50 30 33×315  M30 80 50 18×250  M16/M18 50 30 33×400  M30 80 50 Design:- made of tempered steel, varnished- with round lug and forked opening DIN6315 C 291060 Forked clamp with round clamping face, DIN 6315C Slot width ×total lengthmm291060for lockingscrews Lug mm B Hmmmm Slot width ×total lengthmm291060for lockingscrews Lug mm B Hmmmm 14×160  M12/M14 20 40 25 22×250  M20/M22 30 60 40 18×200  M16/M18 24 50 30 26×250  M24 38 70 40 18×250  M16/M18 24 50 30 — — — — — — Design: - made of tempered steel, varnished- with bevelled forked opening DIN6315 B 291100 Forked clamp bevelled, DIN 6315B Slot width ×total lengthmm291100 for lockingscrews Bmm Hmm Slot width ×total lengthmm291100 for locking B Hscrewsmmmm 6,6×60  M6 19 12 22×200  M20/M22 52 40 9×80  M8 25 15 22×250  M20/M22 62 40 11×100  M10 31 20 22×315  M20/M22 62 40 14×125  M12/M14 38 25 26×200  M24 66 40 14×160  M12/M14 38 25 26×250  M24 66 40 14×200  M12/M14 38 25 26×315  M24 66 40 18×160  M16/M18 48 30 33×250  M30 74 50 18×200  M16/M18 48 30 33×315  M30 74 50 18×250  M16/M18 48 40 33×400  M30 74 50 Design:- made of tempered steel, varnished- plane-parallel clamping and support surfacesDIN6316 291120 Clamp cranked, DIN 6316 Slot width ×total lengthmm291120 for lockingscrews amm 2amm Bmm Slot width ×total lengthmm291120 for locking a 2a Bscrewsmmmmmm 6,6×60  M6 10 20 20 18×160  M16/M18 25 50 50 9×80  M8 12 24 25 22×160  M20/M22 30 60 60 11×100  M10 15 30 30 22×200  M20/M22 30 60 60 14×125  M12/M14 20 40 40 26×200  M24 35 70 70 18×125  M16/M18 25 50 50 26×250  M24 35 70 70 29/598 www.precitool.de
