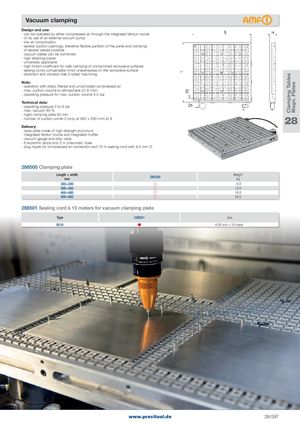

Clamping Tables Magn. Plates Vacuum clamping Design and use: - can be operated by either compressed air through the integrated Venturi nozzle or by use of an external vacuum pump - low air consumption - several suction openings, therefore flexible partition of the panel and clamping of several pieces possible - vacuum plates can be combined - high retaining power - universally applicable - high friction coefficient for safe clamping of unmachined workpiece surfaces - sealing cords compensate minor unevenesses on the workpiece surface - distortion and vibration free 5-sided machining Note: - operation with dried, filtered and unlubricated compressed air - max. suction volume to atmosphere 21.8 l/min - operating pressure for max. suction volume 3.5 bar Technical data: - operating pressure 3 to 6 bar - max. vacuum 93 % - hight clamping plate 40 mm - number of suction points 3 (only at 300 × 200 mm) to 9 28 Delivery: - base plate made of high-strength aluminium - integrated Venturi nozzle and integrated muffler - vacuum gauge and stop valve - 6 eccentric stops and 2 m pneumatic hose - plug nipple for compressed air connection and 10 m sealing cord with 4.5 mm  288500 Clamping plate Length × widthmm 288500 Weightkg 300×200   6.0 300×400  12.0 400×400  16.0 400×600  24.0 288501 Sealing cord á 10 meters for vacuum clamping plate Type 288501 size 0010  4.00 mm × 10 meter www.precitool.de 28/597
