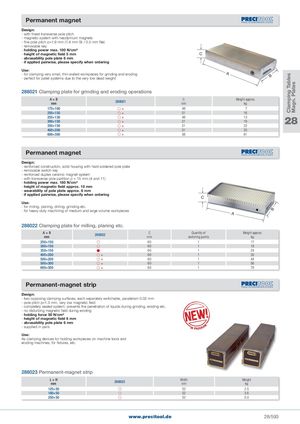

B Clamping Tables Magn. Plates Permanent magnet Design: - with finest transverse pole pitch - magnetic system with neodymium magnets - fine pole pitch p=1.9 mm (1.4 mm St / 0.5 mm Ne) - removable key - holding power max. 100 N/cm² - height of magnetic field 5 mm C - abrasability pole plate 6 mm - if applied pairwise, please specify when ordering Use: - for clamping very small, thin-walled workpieces for grinding and eroding- perfect for pallet systems due to the very low dead weightA B 288021 Clamping plate for grinding and eroding operations A×Bmm 288021 C Weight approx.mmkg 175×100 + 48  7 250×150 + 51 16 255×130300×150 ++ 4851 1319 28 350×150 + 51 22 400×200 + 51 33 600×300 + 56 81 Permanent magnet Design: - reinforced construction, solid housing with hard soldered pole plate - removable switch key - reinforced duplex ceramic magnet system - with transverse pole partition p = 15 mm (4 and 11) - holding power max. 180 N/cm² - height of magnetic field approx. 10 mm - wearability of pole plate approx. 6 mm - if applied pairwise, please specify when ordering C Use: - for milling, planing, drilling, grinding etc. - for heavy-duty machining of medium and large volume workpieces A 288022 Clamping plate for milling, planing etc. A×Bmm 288022 C Quantity of Weight approx.mmswitching pointskg 250×150  60 1 17 300×150  60 1 18 350×150  60 1 24 400×200 + 60 1 35 500×200 + 60 1 44 500×300 + 60 1 56 600×300 + 60 1 78 Permanent-magnet strip Design: - two opposing clamping surfaces, each separately switchable, parallelism 0.02 mm - pole pitch p=1.3 mm, very low magnetic field - completely sealed system; prevents the penetration of liquids during grinding, eroding etc. - no disturbing magnetic field during eroding - holding force 50 N/cm² - height of magnetic field 6 mm - abrasability pole plate 6 mm - supplied in pairs Use: As clamping devices for holding workpieces on machine tools and eroding machines, for fixtures, etc. 288023 Permanent-magnet strip L×Hmm 288023 Width Weightmmkg 125×50  52 2.5 180×50  52 3.6 250×50  52 5.0 www.precitool.de 28/593
