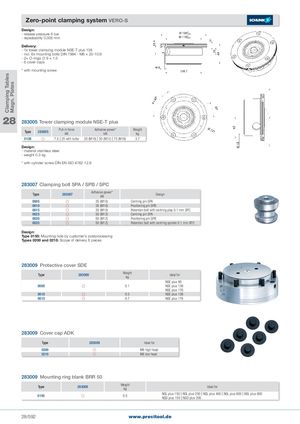

Clamping Tables Magn. Plates Zero-point clamping system VERO-S Design: - release pressure 6 bar - repeatability 0.005 mm Delivery: - 1x tower clamping module NSE-T plus 138 - incl. 6x mounting bolts DIN 7984 - M8 × 20-10.9 - 2× O-rings  9 × 1.5 - 6 cover caps * with mounting screw 28 283005 Tower clamping module NSE-T plus Type 283005 Pull-in forcekN Adhesive power* WeightkNkg 0138  7.5 | 25 with turbo 35 (M10) | 50 (M12) | 75 (M16) 3.7 Design: - material stainless steel - weight 0.3 kg * with cylinder screw DIN EN ISO 4762-12.9 283007 Clamping bolt SPA / SPB / SPC Type 283007 Adhesive power*kN Design 0005  35 (M10) Centring pin SPA 0010  35 (M10) Positioning pin SPB 0015  35 (M10) Retention bolt with centring play 0.1 mm SPC 0025  50 (M12) Centring pin SPA 0030  50 (M12) Positioning pin SPB 0035  50 (M12) Retention bolt with centring spindle 0.1 mm SPC Design: Type 0150: Mounting hole by customer's postprocessing Types 0200 and 0210: Scope of delivery 6 pieces 283009 Protective cover SDE Type 283009 Weightkg Ideal for NSE plus 90 0005  0.1 NSE plus 138 NSE plus 176 0010  0.5 NSE plus 138 0015  0.7 NSE plus 176 283009 Cover cap ADK Type 283009 Ideal for 0200  M8 high head 0210  M8 low head 283009 Mounting ring blank BRR 50 Type 283009 Weightkg Ideal for 0150  0.5 NSL plus 150 | NSL plus 200 | NSL plus 400 | NSL plus 600 | NSL plus 800NSD plus 150 | NSD plus 200 28/592 www.precitool.de
