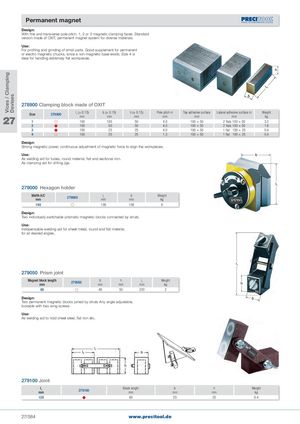

Vices / Clamping Devises Permanent magnet Design: With fine and transverse pole pitch. 1, 2 or 3 magnetic clamping faces. Standard version made of OXIT, permanent magnet system for diverse materials. Use: For profiling and grinding of small parts. Good supplement for permanent or electro magnetic chucks, since a non-magnetic base exists. Size 4 is ideal for handling extremely flat workpieces. 278900 Clamping block made of OXIT Size271 278900 l1 (± 0.15)mm b (± 0.15) mm h (± 0.15)mm Pole pitch in Top adhesive surface Lateral adhesive surface in Weightmmmmmmkg100100504.0100 × 502 flats 100 × 503.2 2  100  50 50 4.0 100 × 50 2 flats 100 × 50 1.6 3  100  25 25 4.0 100 × 50 1 flat   100 × 25 0.4 4  100  25 25 1.3 100 × 50 1 flat   100 × 25 0.4 Design: Strong magnetic power, continuous adjustment of magnetic force to align the workpieces. Use: As welding aid for tubes, round material, flat and sectional iron. As clamping aid for drilling jigs. 279000 Hexagon holder Width A/Cmm 279000 l 1mm bmm Weightkg 140  108 108 6 Design: Two individually switchable prismatic magnetic blocks connected by struts. Use: Indispensable welding aid for sheet metal, round and flat material, for all desired angles. 279050 Prism joint Magnet block lengthmm 279050 b hmmmm l1mm Weightkg 60  48 50 220 2 Design: Two permanent magnetic blocks joined by struts Any angle adjustable, lockable with two wing screws Use: As welding aid to hold sheet steel, flat iron etc. 279100 Joint l1mm 279100 Block lengthmm bmm hmm Weightkg 126  60 25 25 0.4 27/584 www.precitool.de
