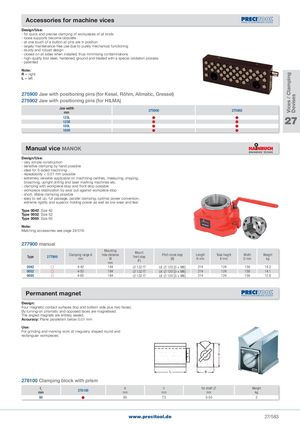

Vices / Clamping Devises Accessories for machine vices Design/Use: - for quick and precise clamping of workpieces of all kinds - loose supports become obsolete - at one touch of a button all pins are in position - largely maintenance-free use due to purely mechanical functioning - sturdy and robust design - closed on all sides when installed, thus minimising contaminations - high-quality tool steel, hardened, ground and treated with a special oxidation process - patented Note: R = right L = left 275900 Jaw with positioning pins (for Kesel, Röhm, Allmatic, Gressel) 275902 Jaw with positioning pins (for HILMA) Jaw widthmm 275900 275902 125L125R   27 160L   160R   Manual vice MANOK Design/Use: - very simple construction - sensitive clamping by hand possible - ideal for 5-sided machining - repeatability < 0.01 mm possible - extremely versatile applicable on machining centres, measuring, shaping, broaching, upright drilling and laser marking machines etc. - clamping with workpiece stop and front stop possible - workpiece stabilization by axial pull against workpiece stop - short, stable clamping possible - easy to set up, full passage, parallel clamping, optimal power conversion, extreme rigidity and superior holding power as well as low wear and tear Type 0042: Size 42 Type 0052: Size 52 Type 0065: Size 65 Note: Matching accessories see page 24/519. 277900 manual MountingType277900Clamping range Ahole distancemmWmmMountfront stop(F)Pitch circle stopLengthTotal heightWidth Weight(B)H mmK mmO mmkg 0042  4-42 184  132 f7 LK  120 [3 × M6] 214 124 159 14.3 0052  4-52 184  132 f7 LK  120 [3 × M6] 214 124 159 14.1 0065  4-65 184  132 f7 LK  120 [3 × M6] 214 124 159 12.9 Permanent magnet Design: Four magnetic contact surfaces (top and bottom side plus two faces). By turning-on prismatic and opposed faces are magnetised. The angled magnets are entirely sealed. Accuracy: Plane parallelism below 0.01 mm Use: For grinding and marking work at irregularly shaped round and rectangular workpieces. 278100 Clamping block with prism l1mm 278100 bmm hmm for shaft mm Weightkg 80  60 73 5-50 2 www.precitool.de 27/583
