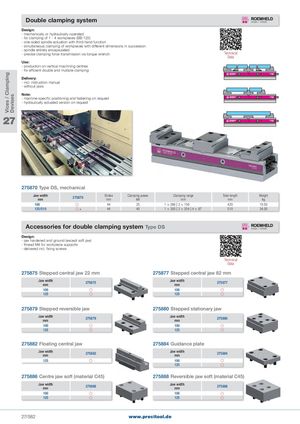

Vices / Clamping Devises Double clamping system Design: - mechanically or hydraulically operated - for clamping of 1 - 4 workpieces (BB 125) - one-sided spindle actuation with third-hand function - simultaneous clamping of workpieces with different dimensions in succession - spindle entirely encapsulated - precise clamping force transmission via torque wrench Technical Data Use: - production on vertical machining centres - for efficient double and multiple clamping Delivery: - incl. instruction manual - without jaws Note: - machine-specific positioning and fastening on request - hydraulically actuated version on request 27 275870 Type DS, mechanical Jaw widthmm 275870 Stroke Clamping powermmkN Clamping rangemm Total length Weightmmkg 100  44 25 1 × 266 | 2 × 156 420 19.50 125/510 + 44 40 1 × 350 | 2 × 204 | 4 × 97 510 34.00 Accessories for double clamping system Type DS Design: - jaw hardened and ground (except soft jaw) - thread M4 for workpiece supports - delivered incl. fixing screws Technical Data 275875 Stepped central jaw 22 mm 275877 Stepped central jaw 82 mm Jaw widthmm 275875 Jaw widthmm 275877 100  100  125  125  275879 Stepped reversible jaw 275880 Stepped stationary jaw Jaw widthmm 275879 Jaw widthmm 275880 100  100  125  125  275882 Floating central jaw 275884 Guidance plate Jaw widthmm 275882 Jaw widthmm 275884 125  100  125  275886 Centre jaw soft (material C45) 275888 Reversible jaw soft (material C45) Jaw widthmm 275886 Jaw widthmm 275888 100  100  125  125  27/582 www.precitool.de
