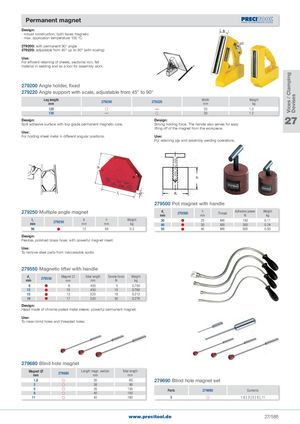

Vices / Clamping Devises Permanent magnet Design: - robust construction, both faces magnetic - max. application temperature 100 °C 279200: with permanent 90° angle 279220: adjustable from 45° up to 90° (with scaling) Use: For efficient retaining of sheets, sectional iron, flat material in welding and as a tool for assembly work. 279200 Angle holder, fixed 279220 Angle support with scale, adjustable from 45° to 90° Leg lengthmm 279200 279220 Widthmm Weightkg 120  — 30 1.0 138 —  30 1.2 Design: Design:Split adhesive surface with top-grade permanent magnetic core.Strong holding force. The handle also serves for easy27 lifting off of the magnet from the workpiece. Use: For holding sheet metal in different angular positions. Use: For retaining jigs and assembly welding operations. 279500 Pot magnet with handle 279250 Multiple angle magnet d1mm 279500 hmm Thread Adhesive powerN Weight kg l1mm 279250 b hmmmm Weightkg 30  25 M6 150 0.114030M83000.24 96  12 64 0.3 50  40 M8 500 0.50 Design: Flexible, polished brass hose, with powerful magnet insert. Use: To remove steel parts from inaccessible spots. 279550 Magnetic lifter with handle d1mm 279550 Magnet mm Total length Tensile force WeightmmNkg d1 8   6 450  5 0.700 12  10 450 10 0.760 15  13 520 18 0.212 19  17 520 30 0.276 Design: Head made of chrome-plated metal sleeve, powerful permanent magnet. Use: To clean blind holes and threaded holes. 279680 Blind hole magnet Magnet mm 279680 Length magn. sectionmm Total lengthmm 1,6  35  65 279690 Blind hole magnet set 3  38  90 5  35 130 Parts 279690 Contents 8  40 150 11  42 180 5  1.6 | 3 | 5 | 8 | 11 www.precitool.de 27/585
