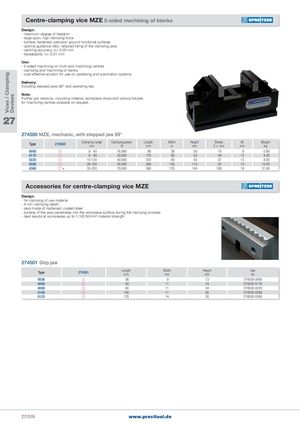

Vices / Clamping Devises Centre-clamping vice MZE 5-sided machining of blanks Design: - maximum degree of freedom - large span, high clamping force - surface hardened, precision ground functional surfaces - optimal guidance ratio, reduced tilting of the clamping jaws - centring accuracy >|< 0.03 mm - repeatability >|< 0.01 mm Use: - 5-sided machining on multi-axis machining centres - clamping and machining of blanks - cost-effective solution for use on palletising and automation systems Delivery: Including stepped jaws 89° and operating key. Note: Further jaw versions, mounting material, workpiece stops and various fixtures for machining centres available on request. 27 274500 MZE, mechanic, with stepped jaw 89° Type 274500 Clamping range Clamping power Length Width Height Stroke AFmmNmmmmm2 × mmmmWeightkg 0080   0- 40 16,000  80  36  50  18  8  0.80 0170   0- 90 30,000 170  60  82  44 12  4.00 0220  15-130 40,000 220  80  92  57 15  8.00 0280  26-190 50,000 280 100 114  82 15 15.00 0360 + 35-250 70,000 360 125 140 108 18 31.00 Accessories for centre-clamping vice MZE Design: - for clamping of raw material - 4 mm clamping depth - jaws made of hardened, coated steel - surface of the jaws penetrates into the workpiece surface during the clamping process - best results at workpieces up to 1,100 N/mm² material strength 274501 Grip jaw Type 274501 Lengthmm Widthmm Heightmm Usefor 0036   36  8 13 274500 0080 0060   60 11 24 274500 0170 0080   80 11 24 274500 0220 0100  100 11 26 274500 0280 0125  125 14 30 274500 0360 27/574 www.precitool.de
