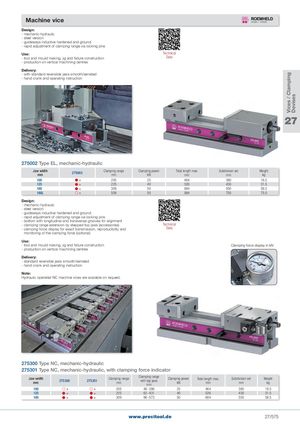

Vices / Clamping Devises Machine vice Design: - mechanic-hydraulic - steel version - guideways inductive hardened and ground - rapid adjustment of clamping range via locking pins Use: Technical - tool and mould making, jig and fixture construction Data - production on vertical machining centres Delivery: - with standard reversible jaws smooth/serrated - hand crank and operating instruction 27 275002 Type EL, mechanic-hydraulic Jaw widthmm 275002 Clamping range Clamping power Total length max.mmkNmm Subdivision setmm Weightkg 100 + 205 25 464 380 18.5 125 + 225 40 526 430 31.5 160 + 309 50 684 550 58.5 160L + 509 50 884 750 75.0 Design: - mechanic-hydraulic - steel version - guideways inductive hardened and ground - rapid adjustment of clamping range via locking pins - bottom with longitudinal and transversal grooves for alignment - clamping range extension by stepped top jaws (accessories) Technical - clamping force display for exact transmission, reproducibility and Data monitoring of the clamping force (optional) Use: - tool and mould making, jig and fixture construction Clamping force display in kN - production on vertical machining centres Delivery: - standard reversible jaws smooth/serrated - hand crank and operating instruction Note: Hydraulic operated NC machine vices are available on request. 275300 Type NC, mechanic-hydraulic 275301 Type NC, mechanic-hydraulic, with clamping force indicator Jaw widthmm 275300 275301 Clamping rangemm Clamping rangewith top jawsmmClamping powerTotal length max.kNmmSubdivision setmm Weightkg 100 + + 205 48 - 386  25 464 380 18.5 125 + + 225 62 - 431  40 526 430 31.5 160 + + 309 96 - 573  50 684 550 58.5 www.precitool.de 27/575
