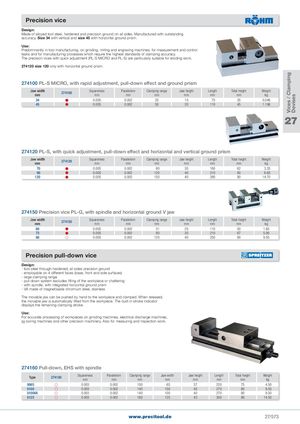

Vices / Clamping Devises Precision vice Design: Made of alloyed tool steel, hardened and precision ground on all sides. Manufactured with outstanding accuracy. Size 34 with vertical and size 45 with horizontal ground prism. Use: Predominantly in tool manufacturing, on grinding, milling and engraving machines, for measurement and control tasks and for manufacturing processes which require the highest standards of clamping accuracy. The precision vices with quick adjustment (PL-S MICRO and PL-S) are particularly suitable for eroding work. 274120 size 120 only with horizontal ground prism. 274100 PL-S MICRO, with rapid adjustment, pull-down effect and ground prism Jaw widthmm 274100 Squarenessmm Parallelism Clamping range Jaw height Length Total height Weightmmmmmmmmmmkg 34  0.005 0.002 25 15  75 35 0.546 45  0.005 0.002 50 20 110 45 1.196 27 274120 PL-S, with quick adjustment, pull-down effect and horizontal and vertical ground prism Jaw widthmm 274120 Squarenessmm Parallelism Clamping range Jaw height Length Total height Weightmmmmmmmmmmkg 70  0.005 0.002  80 30 160 62  3.35 90  0.005 0.002 120 40 210 80  6.65 120  0.005 0.002 150 40 280 90 14.70 274150 Precision vice PL-G, with spindle and horizontal ground V jaw Jaw widthmm 274150 Squarenessmm Parallelism Clamping range Jaw height Length Total height Weightmmmmmmmmmmkg 60  0.005 0.002  31 25 110 50 1.65 73  0.005 0.002  80 35 210 67 5.90 88  0.005 0.002 120 40 250 80 9.55 Precision pull-down vice Design: - tool steel through-hardened, all sides precision ground - employable on 4 different faces (base, front and side surfaces) - large clamping range - pull-down system excludes lifting of the workpiece or chattering - with spindle, with integrated horizontal ground prism - VA made of magnetisable chromium steel, stainless The movable jaw can be pushed by hand to the workpiece and clamped. When released, the movable jaw is automatically lifted from the workpiece. The built-in stroke indicator displays the remaining clamping stroke. Use: For accurate processing of workpieces on grinding machines, electrical discharge machines, jig boring machines and other precision machinery. Also for measuring and inspection work. 274160 Pull-down, EHS with spindle Type 274160 Squareness Parallelism Clamping range Jaw width Jaw height Length Total height Weightmmmmmmmmmmmmmmkg 0065  0.003 0.002 100  65 37 220 75  4.50 0100  0.003 0.002 140 100 40 270 80  9.50 0100VA  0.003 0.002 140 100 40 270 80  9.50 0125  0.003 0.002 160 125 43 300 88 14.50 www.precitool.de 27/573
