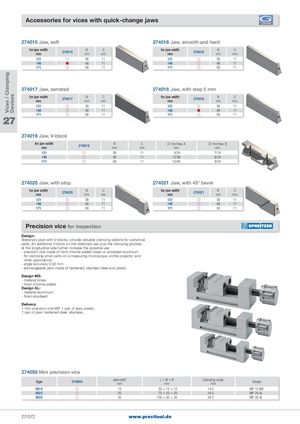

Vices / Clamping Devises Accessories for vices with quick-change jaws 274015 Jaw, soft 274016 Jaw, smooth and hard for jaw widthmm 274015 Bmm Cmm for jaw widthmm 274016 Bmm Cmm 121  38 11 121  38 11 146  48 11 146  48 11 171  58 11 171  58 11 274017 Jaw, serrated 274018 Jaw, with step 5 mm for jaw widthmm 274017 Bmm Cmm for jaw widthmm 274018 Bmm Cmm 121  38 11 121  38 11 146  48 11 146  48 11 171  58 11 171  58 11 27 274019 Jaw, V-block for jaw widthmm 274019 Bmm Cmm  min/max. Amm  min/max. Bmm 121  38 11 9/24 7/18 146  48 11 13/38 9/24 171  58 11 15/40 9/24 274020 Jaw, with stop 274021 Jaw, with 45° bevel for jaw widthmm 274020 Bmm Cmm for jaw widthmm 274021 Bmm Cmm 121  38 11 121  38 11 146  48 11 146  48 11 171  58 11 171  58 11 Precision vice for inspection Design: Stationary jaws with V-blocks, provide versatile clamping options for cylindrical parts. An additional V-block on the stationary jaw plus the clamping grooves at the longitudinal side further increase the possible use - precision vice made of hard chrome-plated brass or anodised aluminium - for clamping small parts on a measuring microscope, profile projector and other applications - angle accuracy 0.02 mm - exchangeable jaws made of hardened, stainless steel and plastic Design MS: - material brass - finish chrome-plated Design AL: - material aluminium - finish anodised Delivery: 1 mini precision vice MP, 1 pair of jaws plastic, 1 pair of jaws hardened steel, stainless. 274050 Mini precision vice Type 274050 Jaw widthmm L×W×Hmm Clamping rangemm Design 0015  15   50 × 15 × 15 14.5 MP 15 MS 0025  25   75 × 25 × 25 24.5 MP 25 AL 0035  35 100 × 35 × 35 34.5 MP 35 AL 27/572 www.precitool.de
