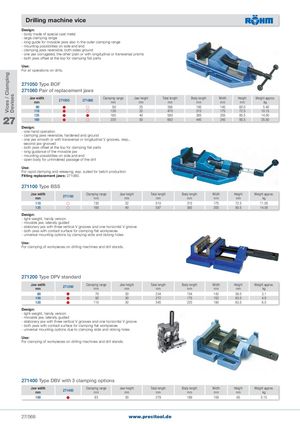

Vices / Clamping Devises Drilling machine vice Design: - body made of special cast metal - large clamping range - long guide for movable jaws also in the outer clamping range - mounting possibilities on side and end - clamping jaws reversible, both sides ground - one jaw corrugated, the other plain or with longitudinal or transversal prisms - both jaws offset at the top for clamping flat parts Use: For all operations on drills. 271050 Type BOF 271060 Pair of replacement jaws Jaw widthmm 271050 271060 Clamping rangemm Jaw heightmm Total length Body length Width Height Weight approx.mmmmmmmmkg 90    90 25 356 195 145 60.0  5.40 110   130 32 470 315 175 72.5 10.15 135   160 40 580 365 205 80.5 14.00 27 160   220 50 692 445 245 95.5 25.50 Design: - one-hand operation - clamping jaws reversible, hardened and ground - one jaw smooth or with transversal or longitudinal V grooves, resp., second jaw grooved - both jaws offset at the top for clamping flat parts - long guidance of the movable jaw - mounting possibilities on side and end - open body for unhindered passage of the drill Use: For rapid clamping and releasing, esp. suited for batch production Fitting replacement jaws: 271060. 271100 Type BSS Jaw widthmm 271100 Clamping rangemm Jaw heightmm Total length Body length Width Height Weight approx.mmmmmmmmkg 110  130 32 510 315 175 72.5 11.05 135  160 40 587 365 205 80.5 14.00 Design: - light-weight, handy version - movable jaw, laterally guided - stationary jaw with three vertical V grooves and one horizontal V groove - both jaws with contact surface for clamping flat workpieces - universal mounting options by clamping slots and oblong holes Use: For clamping of workpieces on drilling machines and drill stands. 271200 Type DPV standard Jaw widthmm 271200 Clamping rangemm Jaw heightmm Total length Body length Width Height Weight approx.mmmmmmmmkg 80   70 30 234 154 142 58.0 3.1 100   92 30 272 175 152 63.5 4.0 120  110 30 345 225 180 63.5 6.5 Design: - light-weight, handy version - movable jaw, laterally guided - stationary jaw with three vertical V grooves and one horizontal V groove - both jaws with contact surface for clamping flat workpieces - universal mounting options due to clamping slots and oblong holes Use: For clamping of workpieces on drilling machines and drill stands. 271400 Type DBV with 3 clamping options Jaw widthmm 271400 Clamping rangemm Jaw heightmm Total length Body length Width Height Weight approx.mmmmmmmmkg 100  93 30 279 189 159 65 5.15 27/568 www.precitool.de
