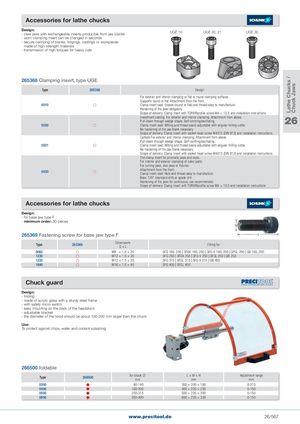

Lathe Chucks / Chuck Jaws Accessories for lathe chucks Design:- claw jaws with exchangeable inserts producible from jaw blanks UGE 10 UGE 20, 21 UGE 30 - worn clamping insert can be changed in seconds - secure clamping of blanks, forgings, castings or workpieces made of high-strength materials - transmission of high torques for heavy cuts 265368 Clamping insert, type UGE Type 265368 Design For exterior and interior clamping or flat or round clamping surfaces Supports round or flat. Attachment from the front. 0010  Clamp insert seat: Groove (round or flat) and thread easy to manufacture. Hardening of the jaws obligatory. Scope of delivery: Clamp insert with TORX®profile screw M4 × 13.5 and installation instructions Investment casting. For exterior and interior clamping. Attachment from above.Pull-down through wedge shape. Self-centring/oscillating.26 0020  Clamp insert seat: Milling and thread easily adjustable with angular milling cutter. No hardening of the jaw blank necessary Scope of delivery: Clamp insert with socket head screw M4312 (DIN 912) and installation instructions. Carbide For exterior and interior clamping. Attachment from above. Pull-down through wedge shape. Self-centring/oscillating. 0021  Clamp insert seat: Milling and thread easily adjustable with angular milling cutter. No hardening of the jaw blank necessary Scope of delivery: Clamp insert with socket head screw M4312 (DIN 912) and installation instructions. The clamp insert for prismatic jaws and vices. For interior and exterior clamping of cubic parts. For turning jaws, vice jaws or fixtures. 0030  Attachment from the front.Clamp insert seat: Hole and thread easy to manufacture. Base 120° (standard drill) or spade drill. Hardening of the jaws for continuous use recommended. Scope of delivery: Clamp insert with TORX®profile screw M4 × 13.5 and installation instructions Accessories for lathe chucks Design: - for base jaw type F - minimum order: 30 pieces G 265369 Fastening screw for base jaw type F L Type 265369 DimensionsG×L Fitting for 0082  M8   × 1.0 × 20 SFG 160, 200 | SFGK 160, 200 | SFG-V 160, 200 | SFGL 200 | GB 160, 200 1230  M12 × 1.5 × 30 SFG 250 | SFGK 250 | SFG-V 250 | SFGL 250 | GB 250 1235  M12 × 1.5 × 35 SFG 315 | SFGL 315 | SFG-V 315 | GB 400 1640  M16 × 1.5 × 40 SFG 400 | SFGL 400 Chuck guard Design: - folding - made of acrylic glass with a sturdy steel frame - with safety micro switch - easy mounting on the back of the headstock - adjustable bracket - the diameter of the hood should be about 150-200 mm larger than the chuck Use: To protect against chips, water and coolant splashing 266500 foldable Type 266500 for chuck mm L×W×H Adjustment rangemmmm 0300  80-140 300 × 200 × 180 0-215 0400  160-200 400 × 235 × 230 0-150 0500  250-315 500 × 235 × 280 0-150 0600  350-400 600 × 235 × 330 0-150 www.precitool.de 26/567
