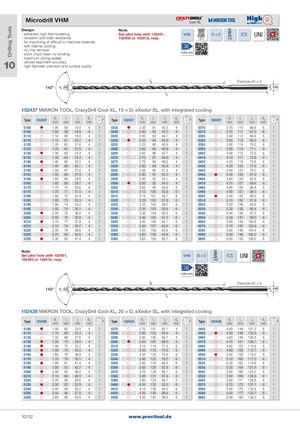

Общий каталог PRECITOOL

Microdrill VHM
Design: - extremely high thermosetting - oxidation and wear resistance - for machining of difficult to machine materials - with internal cooling - no chip removal - short chips mean no winding - maximum drilling speed - utmost alignment accuracy - high diameter precision and surface quality	Note: Set pilot hole with 102401, 102403 or 102416, resp.	VHM Cutting data	coated	15 × D	140°	ICS UNI

Example 40 × d d (k6) d (h6) 1 2

102437 MIKRON TOOL, CrazyDrill Cool-XL, 15 × D, eXedur SL, with integrated cooling

Type	102437	d1 mm	l1 mm	l2 mm	d2 mm		Type	102437	d1 mm	l1 mm	l2 mm	d2 mm		Type	102437	d1 mm	l1 mm	l2 mm	d2 mm
0100		1�00	58	18�0	4	1	0235		2�35	81	42�3	4	1	0370		3�70	110	66�6	6 1
0105		1�05	59	18�9	4	1	0240		2�40	82	43�2	4	1	0375		3�75	111	67�5	6 1
0110		1�10	60	19�8	4	1	0245		2�45	83	44�1	4	1	0380		3�80	112	68�4	6 1
0115		1�15	61	20�7	4	1	0250		2�50	84	45�0	4	1	0385		3�85	113	69�3	6 1
0120		1�20	62	21�6	4	1	0255		2�55	85	45�9	4	1	0390		3�90	114	70�2	6 1
0125		1�25	62	22�5	4	1	0260		2�60	86	46�8	4	1	0395		3�95	114	71�1	6 1
0130		1�30	63	23�4	4	1	0265		2�65	86	47�7	4	1	0400		4�00	115	72�0	6 1
0135		1�35	64	24�3	4	1	0270		2�70	87	48�6	4	1	0410		4�10	117	73�8	6 1
0140		1�40	65	25�2	4	1	0275		2�75	88	49�5	4	1	0420		4�20	119	75�6	6 1
0145		1�45	66	26�1	4	1	0280		2�80	89	50�4	4	1	0430		4�30	120	77�4	6 1
0150		1�50	67	27�0	4	1	0285		2�85	90	51�3	4	1	0440		4�40	122	79�2	6 1
0155		1�55	68	27�9	4	1	0290		2�90	91	52�2	4	1	0450		4�50	124	81�0	6 1
0160		1�60	68	28�8	4	1	0295		2�95	92	53�1	4	1	0460		4�60	126	82�8	6 1
0165		1�65	69	29�7	4	1	0300		3�00	92	54�0	4	1	0470		4�70	127	84�6	6 1
0170		1�70	70	30�6	4	1	0305		3�05	99	54�9	6	1	0480		4�80	129	86�4	6 1
0175		1�75	71	31�5	4	1	0310		3�10	100	55�8	6	1	0490		4�90	131	88�2	6 1
0180		1�80	72	32�4	4	1	0315		3�15	101	56�7	6	1	0500		5�00	133	90�0	6 1
0185		1�85	73	33�3	4	1	0320		3�20	102	57�6	6	1	0510		5�10	134	91�8	6 1
0190		1�90	74	34�2	4	1	0325		3�25	102	58�5	6	1	0520		5�20	136	93�6	6 1
0195		1�95	74	35�1	4	1	0330		3�30	103	59�4	6	1	0530		5�30	138	95�4	6 1
0200		2�00	75	36�0	4	1	0335		3�35	104	60�3	6	1	0540		5�40	139	97�2	6 1
0205		2�05	76	36�9	4	1	0340		3�40	105	61�2	6	1	0550		5�50	141	99�0	6 1
0210		2�10	77	37�8	4	1	0345		3�45	106	62�1	6	1	0560		5�60	143	100�8	6 1
0215		2�15	78	38�7	4	1	0350		3�50	107	63�0	6	1	0570		5�70	145	102�6	6 1
0220		2�20	79	39�6	4	1	0355		3�55	108	63�9	6	1	0580		5�80	146	104�4	6 1
0225		2�25	80	40�5	4	1	0360		3�60	108	64�8	6	1	0590		5�90	148	106�2	6 1
0230		2�30	80	41�4	4	1	0365		3�65	109	65�7	6	1	0600		6�00	150	108�0	6 1

Note: UNI

Set pilot hole with 102401, VHM 20 × D ICS

102403 or 102416, resp. 140°

Cutting data Example 40 × d d (k6) d (h6) 1 2

102439 MIKRON TOOL, CrazyDrill Cool-XL, 20 × D, eXedur SL, with integrated cooling

Type	102439	d1 mm	l1 mm	l2 mm	d2 mm		Type	102439	d1 mm	l1 mm	l2 mm	d2 mm		Type	102439	d1 mm	l1 mm	l2 mm	d2 mm
0100		1�00	63	23�0	4	1	0270		2�70	101	62�1	4	1	0440		4�40	144	101�2	6	1
0110		1�10	65	25�3	4	1	0280		2�80	103	64�4	4	1	0450		4�50	146	103�5	6	1
0120		1�20	68	27�6	4	1	0290		2�90	105	66�7	4	1	0460		4�60	149	105�8	6	1
0130		1�30	70	29�9	4	1	0300		3�00	107	69�0	4	1	0470		4�70	151	108�1	6	1
0140		1�40	72	32�2	4	1	0310		3�10	115	71�3	6	1	0480		4�80	153	110�4	6	1
0150		1�50	74	34�5	4	1	0320		3�20	118	73�6	6	1	0490		4�90	155	112�7	6	1
0160		1�60	76	36�8	4	1	0330		3�30	120	75�9	6	1	0500		5�00	158	115�0	6	1
0170		1�70	79	39�1	4	1	0340		3�40	122	78�2	6	1	0510		5�10	160	117�3	6	1
0180		1�80	81	41�4	4	1	0350		3�50	124	80�5	6	1	0520		5�20	162	119�6	6	1
0190		1�90	83	43�7	4	1	0360		3�60	126	82�8	6	1	0530		5�30	164	121�9	6	1
0200		2�00	85	46�0	4	1	0370		3�70	129	85�1	6	1	0540		5�40	166	124�2	6	1
0210		2�10	88	48�3	4	1	0380		3�80	131	87�4	6	1	0550		5�50	169	126�5	6	1
0220		2�20	90	50�6	4	1	0390		3�90	133	89�7	6	1	0560		5�60	171	128�8	6	1
0230		2�30	92	52�9	4	1	0400		4�00	135	92�0	6	1	0570		5�70	173	131�1	6	1
0240		2�40	94	55�2	4	1	0410		4�10	138	94�3	6	1	0580		5�80	175	133�4	6	1
0250		2�50	96	57�5	4	1	0420		4�20	140	96�6	6	1	0590		5�90	177	135�7	6	1
0260		2�60	99	59�8	4	1	0430		4�30	142	98�9	6	1	0600		6�00	180	138�0	6	1
