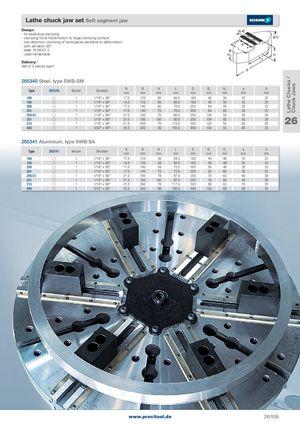

Lathe Chucks / Chuck Jaws Lathe chuck jaw set Soft segment jaw Design: N - for extensive clamping - clamping force transmission to large clamping surface ØD - low-distortion clamping of workpieces sensitive to deformation - with serration 90°- steel 16 MnCr 5 bL a - case-hardenable H1 HB1 Delivery: Set of 3 pieces each B 265340 Steel, type SWB-SM Type 265340 Version Serration N B H L D B1 H1 ammmmmmmmmmmmmmmmbmm 160  1 1/16" × 90° 17.0 120  60  60.0 160  40 50 25 22 165  1 1/16" × 90° 14.0 120  60  60.0 160  40 50 25 20 200  1 1/16" × 90° 17.0 140  60  70.0 200  64 50 35 22 201  1 1/16" × 90° 17.0 140  75  70.0 200  64 65 35 22 250/21  1 1/16" × 90° 21.0 180  70  80.0 250 104 55 30 28 251315  1 1/16" × 90° 21.0 180 100  80.0 250 104 85 3011/16" × 90°21.0240 70110.03201205560282826 400  1 3/32" × 90° 25.5 330  85 155.0 440 150 55 85 35 265341 Aluminium, type SWB-SA Type 265341 Version Serration N B H L D B1 H1 ammmmmmmmmmmmmmmmbmm 160  1 1/16" × 90° 17.0 120  58  59.5 165  40 48 22 22 165  1 1/16" × 90° 14.0 120  58  59.5 165  40 48 25 20 200  1 1/16" × 90° 17.0 140  58  72.5 200  50 48 35 22 201  1 1/16" × 90° 17.0 140  75  72.5 200  50 65 35 22 250/21  1 1/16" × 90° 21.0 180  78  87.5 250  70 63 40 28 251  1 1/16" × 90° 21.0 180 100  87.5 250  70 85 40 28 315  1 1/16" × 90° 21.0 240  78 117.0 320  80 63 70 28 400  1 3/32" × 90° 25.5 330  98 160.0 440 150 68 85 35 www.precitool.de 26/559
