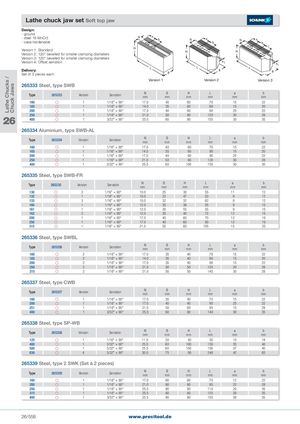

Общий каталог PRECITOOL - страница 563

Lathe Chucks / Chuck Jaws Lathe chuck jaw set Soft top jaw Design: - ground - steel 16 MnCr5- case-hardenable N a b N a b N a b Version 1: Standard H cHH Version 2: 120° bevelled for smaller clamping diameters Version 3: 120° bevelled for smaller clamping diameters Version 4: Offset serration a1 a1 Delivery:Set of 3 pieces each L L BB L B Version 1 Version 2 Version 3 265333 Steel, type SWB Type 265333 Version Serration N B H L ammmmmmmmmm bmm 160  1 1/16" × 90° 17.0 40 60  70 15 22 165  1 1/16" × 90° 14.0 35 60  68 15 20 200  1 1/16" × 90° 17.0 40 60  90 25 22 250  1 1/16" × 90° 21.0 50 80 120 30 28 26 400  1 3/32" × 90° 25.5 60 90 155 30 35 265334 Aluminium, type SWB-AL Type 265334 Version Serration N B H L ammmmmmmmmm bmm 160  1 1/16" × 90° 17.0 40  60  70 15 22 165  1 1/16" × 90° 14.0 35  60  80 15 20 200  1 1/16" × 90° 17.0 40  60  90 25 22 250  1 1/16" × 90° 21.0 50  80 120 30 28 400  1 3/32" × 90° 25.5 60 100 155 30 35 265335 Steel, type SWB-FR Type 265335 Version Serration N B H Lmmmmmmmm amm bmm 130  3 1/16" × 90° 10.0 25 30  55 11 12 132  1 1/16" × 90° 10.0 22 47  53  9 12 133  3 1/16" × 90° 10.0 32 32  62  9 12 160  1 1/16" × 90° 12.0 30 38  55  9 15 161  1 1/16" × 90° 12.0 30 55  55  9 15 162  2 1/16" × 90° 12.0 35 40  72 12 15 200  1 1/16" × 90° 17.0 40 60  70 12 19 250  1 1/16" × 90° 17.0 40 60  90 12 19 315  1 1/16" × 90° 21.0 50 60 105 15 25 265336 Steel, type SWBL Type 265336 Version Serration N B H L ammmmmmmmmm bmm 160  2 1/16" × 90° 17.0 35 40  78 15 22 165  2 1/16" × 90° 14.0 35 40  80 15 20 200  2 1/16" × 90° 17.0 35 40  98 15 22 250  2 1/16" × 90° 21.0 50 50 120 20 28 315  2 1/16" × 90° 21.0 50 50 140 30 28 265337 Steel, type CWB Type 265337 Version Serration N B H L ammmmmmmmmm bmm 160  1 1/16" × 90° 17.0 35 40  70 15 22 200  1 1/16" × 90° 17.0 40 40  90 25 22 251  1 1/16" × 90° 21.0 50 60  95 15 28 400  1 3/32" × 90° 25.5 60 80 140 30 35 265338 Steel, type SP-WB Type 265338 Version Serration N B H L ammmmmmmmmm bmm 125  1 1/16" × 90° 11.0 30  40  55 10 18 400  1 3/32" × 90° 25.5 60 100 155 35 40 500  1 3/32" × 90° 25.5 60 100 195 37 40 630  4 3/32" × 90° 30.0 75  90 240 42 65 265339 Steel, type 2 SWK (Set à 2 pieces) Type 265339 Version Serration N B H L ammmmmmmmmm bmm 160  1 1/16" × 90° 17.0 60 60  70 12 22 200  1 1/16" × 90° 21.0 80 80  95 22 28 250  1 1/16" × 90° 25.5 80 80 110 20 35 315  1 1/16" × 90° 25.5 80 80 125 28 35 400  1 3/32" × 90° 25.5 80 80 150 38 35 26/558 www.precitool.de
