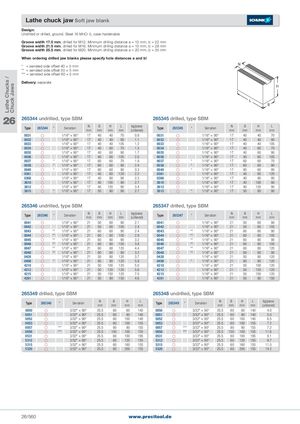

Lathe Chucks / Chuck Jaws Lathe chuck jaw Soft jaw blank Design: Undrilled or drilled, ground. Steel 16 MnCr 5, case-hardenable Groove width 17.0 mm, drilled for M12. Minimum drilling distance a = 12 mm, b = 22 mm Groove width 21.0 mm, drilled for M16. Minimum drilling distance a = 15 mm, b = 28 mm Groove width 25.5 mm, drilled for M20. Minimum drilling distance a = 20 mm, b = 35 mm When ordering drilled jaw blanks please specify hole distances a and b! * = serrated side offset 40 × 5 mm N ** = serrated side offset 50 × 5 mm *** = serrated side offset 60 × 5 mm Delivery: separate H L B 26 265344 undrilled, type SBM 265345 drilled, type SBM Type 265344 * Serration N B H L kg/piecemmmmmmmm(unbored)Type265345 * Serration N B H Lmmmmmmmm 0031  1/16" × 90° 17 40  40  70 0.9 0031  1/16" × 90° 17 40  40  70 0032  1/16" × 90° 17 40  40  90 1.1 0032  1/16" × 90° 17 40  40  90 0033  1/16" × 90° 17 40  40 105 1.2 0033  1/16" × 90° 17 40  40 105 0034  1/16" × 90° 17 40  60  70 1.3 0034  1/16" × 90° 17 40  60  70 0035  1/16" × 90° 17 40  60  90 1.7 0035  1/16" × 90° 17 40  60  90 0036  1/16" × 90° 17 40  60 105 2.0 0036  1/16" × 90° 17 40  60 105 0037  * 1/16" × 90° 17 60  60  70 1.9 0037  * 1/16" × 90° 17 60  60  70 0038  * 1/16" × 90° 17 60  60  90 2.4 0038  * 1/16" × 90° 17 60  60  90 0040  * 1/16" × 90° 17 80  60  90 3.3 0040  * 1/16" × 90° 17 80  60  90 0361  1/16" × 90° 17 40  60 120 2.2 0361  1/16" × 90° 17 40  60 120 0368  1/16" × 90° 17 40  80  90 2.3 0368  1/16" × 90° 17 40  80  90 3610  1/16" × 90° 17 40 100  90 2.7 3610  1/16" × 90° 17 40 100  90 3612  1/16" × 90° 17 40 120  90 3.4 3612  1/16" × 90° 17 40 120  90 3615  * 1/16" × 90° 17 50  80  90 2.7 3615  * 1/16" × 90° 17 50  80  90 265346 undrilled, type SBM 265347 drilled, type SBM Type 265346 * Serration N B H L kg/piecemmmmmmmm(unbored)Type265347 * Serration N B H Lmmmmmmmm 0041  1/16" × 90° 21 50  60  90 2.1 0041  1/16" × 90° 21 50  60  90 0042  1/16" × 90° 21 50  60 105 2.4 0042  1/16" × 90° 21 50  60 105 0043  ** 1/16" × 90° 21 60  60  90 2.4 0043  ** 1/16" × 90° 21 60  60  90 0044  ** 1/16" × 90° 21 60  60 105 2.9 0044  ** 1/16" × 90° 21 60  60 105 0045  ** 1/16" × 90° 21 60  80  90 3.2 0045  ** 1/16" × 90° 21 60  80  90 0046  ** 1/16" × 90° 21 60  80 105 3.8 0046  ** 1/16" × 90° 21 60  80 105 0047  ** 1/16" × 90° 21 60  80 120 4.4 0047  ** 1/16" × 90° 21 60  80 120 0048  ** 1/16" × 90° 21 80  60  90 3.2 0048  ** 1/16" × 90° 21 80  60  90 0428  1/16" × 90° 21 50  80 120 3.7 0428  1/16" × 90° 21 50  80 120 0498  * 1/16" × 90° 21 80  80 120 5.9 0498  * 1/16" × 90° 21 80  80 120 4210  1/16" × 90° 21 50 100 120 5.0 4210  1/16" × 90° 21 50 100 120 4212  1/16" × 90° 21 50 120 120 5.6 4212  1/16" × 90° 21 50 120 120 4215  1/16" × 90° 21 50 150 120 7.0 4215  1/16" × 90° 21 50 150 120 4281  1/16" × 90° 21 50  80 150 4.6 4281  1/16" × 90° 21 50  80 150 265349 drilled, type SBM 265348 undrilled, type SBM Type 265348 * Serration N B H Lmmmmmmmm Type 265349 * Serration N B H L kg/piecemmmmmmmm(unbored) 0050  3/32" × 90° 25.5  60  60 140 0050  3/32" × 90° 25.5  60  60 140  4.0 0051  3/32" × 90° 25.5  60  80 140 0051  3/32" × 90° 25.5  60  80 140  5.0 0052  3/32" × 90° 25.5  60 100 140 0052  3/32" × 90° 25.5  60 100 140  6.5 0053  3/32" × 90° 25.5  60 100 155 0053  3/32" × 90° 25.5  60 100 155  7.2 0057  *** 3/32" × 90° 25.5  80  80 155 0057  *** 3/32" × 90° 25.5  80  80 155  7.2 0058  *** 3/32" × 90° 25.5 100 100 155 0058  *** 3/32" × 90° 25.5 100 100 155 11.6 0531  3/32" × 90° 25.5  60 100 195 0531  3/32" × 90° 25.5  60 100 195  9.1 5312  3/32" × 90° 25.5  60 120 155 5312  3/32" × 90° 25.5  60 120 155  8.7 5315  3/32" × 90° 25.5  60 160 155 5315  3/32" × 90° 25.5  60 160 155 11.5 5320  3/32" × 90° 25.5  60 200 155 5320  3/32" × 90° 25.5  60 200 155 14.2 26/560 www.precitool.de
