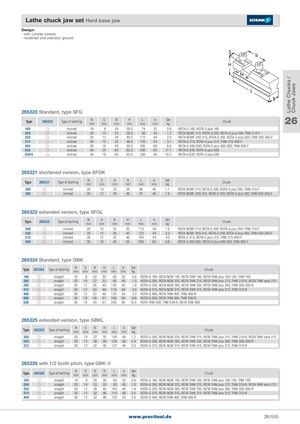

Lathe Chucks / Chuck Jaws Lathe chuck jaw set Hard base jaw Design: - with cylinder screws - hardened and precision ground 265320 Standard, type SFG Type 265320 Type of toothing Nmm Smm Bmm Hmm L bmmmm Setkg Chuck 26 160  inclined 18  8 20 29.5  74 32  0.8 ROTA-S 160, ROTA-S plus 160 200  inclined 20 10 22 35.0  90 40  1.2 ROTA NCWF 210, ROTA-S 200, ROTA-S plus 200, THW 210-F 250  inclined 20 12 26 40.0 110 40  2.0 ROTA NCWF 250-315, ROTA-S 250, ROTA-S plus 250, THW 250-265-F 315  inclined 26 12 32 46.0 125 54  3.1 ROTA-S 315, ROTA-S plus 315, THW 315-400-F 400  inclined 30 18 45 55.0 160 60  6.6 ROTA-S 400-500, ROTA-S plus 400-500, THW 500-F 630  inclined 40 24 65 62.0 230 82 17.1 ROTA-S 630, ROTA-S plus 630 630/4  inclined 30 18 65 62.0 230 60 16.2 ROTA-S 630, ROTA-S plus 630 265321 shortened version, type SFGK Type 265321 Type of toothing Nmm S B H Lmmmmmmmmbmm Setkg Chuck 200  inclined 20 10 22 35 80 40 1.1 ROTA NCWF 210, ROTA-S 200, ROTA-S plus 200, THW 210-F 250  inclined 20 12 26 40 91 40 1.6 ROTA NCWF 250-315, ROTA-S 250, ROTA-S plus 250, THW 250-265-F 265322 extended version, type SFGL Type 265322 Type of toothing Nmm Smm Bmm Hmm Lmm bmm Setkg Chuck 200  inclined 20 10 22 35 110 40 1.5 ROTA NCWF 210, ROTA-S 200, ROTA-S plus 200, THW 210-F 250  inclined 20 12 26 40 122 40 2.3 ROTA NCWF 250-315, ROTA-S 250, ROTA-S plus 250, THW 250-265-F 315  inclined 26 12 32 46 160 54 4.0 ROTA-S 315, ROTA-S plus 315, THW 315-400-F 400  inclined 30 18 45 55 200 60 8.6 ROTA-S 400-500, ROTA-S plus 400-500, THW 500-F 265324 Standard, type GBK Type 265324 Type of toothing Nmm Smm Bmm Hmm Lmm bmm Setkg Chuck 160  straight 18  8 20 30  65 32  0.6 ROTA-G 160, ROTA NCW 185, ROTA THW 165, ROTA THW plus 165-185, THW 165 200  straight 20 10 22 32  85 40  1.0 ROTA-G 200, ROTA NCW 225, ROTA THW 210, ROTA THW plus 215, THW 210-R, ROTA THW vario 215 250  straight 20 12 26 40 104 40  1.8 ROTA-G 250, ROTA NCW 265, ROTA THW 250, ROTA THW plus 260, THW 250-265-R 315  straight 20 12 32 46 115 40  3.0 ROTA-G 315, ROTA NCW 315, ROTA THW 315, ROTA THW plus 315, THW 315-R 400  straight 26 12 32 46 125 54  3.0 ROTA-G 400, ROTA THW 400, THW 400-R 500  straight 30 18 45 61 160 60  8.6 ROTA-G 500, ROTA THW 500, THW 500-R 630  straight 30 18 45 61 203 60 10.5 ROTA THW 630, THW 630-R, ROTA THW 800 265325 extended version, type GBKL Type 265325 Type of toothing Nmm Smm B HmmmmLmm bmm Setkg Chuck 200  straight 20 10 22 32 105 40 1.2 ROTA-G 200, ROTA NCW 225, ROTA THW 210, ROTA THW plus 215, THW 210-R, ROTA THW vario 215 250  straight 20 12 26 40 126 40 2.4 ROTA-G 250, ROTA NCW 265, ROTA THW 250, ROTA THW plus 260, THW 250-265-R 315  straight 20 12 32 46 137 40 3.5 ROTA-G 315, ROTA NCW 315, ROTA THW 315, ROTA THW plus 315, THW 315-R 265326 with 1/2 tooth pitch, type GBK-V Type 265326 Type of toothing Nmm Smm B HmmmmLmm bmm Setkg Chuck 160  straight 18  8 20 30  65 32 0.6 ROTA-G 160, ROTA NCW 185, ROTA THW 165, ROTA THW plus 165-185, THW 165 200  straight 20 10 22 32  85 40 1.0 ROTA-G 200, ROTA NCW 225, ROTA THW 210, ROTA THW plus 215, THW 210-R, ROTA THW vario 215 250  straight 20 12 26 40 104 40 1.8 ROTA-G 250, ROTA NCW 265, ROTA THW 250, ROTA THW plus 260, THW 250-265-R 315  straight 20 12 32 46 115 40 3.0 ROTA-G 315, ROTA NCW 315, ROTA THW 315, ROTA THW plus 315, THW 315-R 400  straight 26 12 32 46 125 54 3.0 ROTA-G 400, ROTA THW 400, THW 400-R www.precitool.de 26/555
