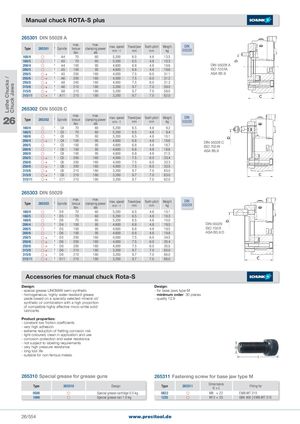

Lathe Chucks / Chuck Jaws Manual chuck ROTA-S plus 265301 DIN 55028 A Type 265301 * Spindle max.torqueNmmax.clamping powerkNmax. speedmin -1Travel/jawmmTooth pitchmmWeightkgDIN55028 160/4  *  A4  70  60 5,200 6.5 4.8 13.5 160/5  *  A5  70  60 5,200 6.5 4.8 10.3 200/4  *  A4 100  95 4,600 6.8 4.8 19.6 DIN 55028 A 200/5  *  A5 100  95 4,600 6.8 4.8 19.6 ISO 702/IA 250/5 + *  A5 200 160 4,000 7.5 6.0 31.1 ASA B5.9 250/6 + *  A6 200 160 4,000 7.5 6.0 31.2 250/8 + *  A8 200 160 4,000 7.5 6.0 31.3 315/6 + *  A6 210 180 3,200 9.7 7.0 59.0 315/8 + *  A8 210 180 3,200 9.7 7.0 58.0 315/11 + * A11 210 180 3,200 9.7 7.0 62.0 265302 DIN 55028 C 26 Type 265302 * Spindle max.torqueNmmax.clamping powerkNmax. speedmin -1Travel/jawmmTooth pitchmmWeightkgDIN55028 160/4  * C4  70  60 5,200 6.5 4.8  9.2 160/5  * C5  70  60 5,200 6.5 4.8  9.4 160/6  * C6  70  60 5,200 6.5 4.8 10.1 200/4 + * C4 100  95 4,600 6.8 4.8 18.6 DIN 55028 C 200/5  * C5 100  95 4,600 6.8 4.8 18.7 ISO 702/III 200/6  * C6 100  95 4,600 6.8 4.8 18.6 ASA B5.9 200/8  * C8 100  95 4,600 6.8 4.8 21.5 250/5 + * C5 200 160 4,000 7.5 6.0 33.4 250/6 + * C6 200 160 4,000 7.5 6.0 33.3 250/8 + * C8 200 160 4,000 7.5 6.0 33.5 315/6 + * C6 210 180 3,200 9.7 7.0 63.0 315/8 + * C8 210 180 3,200 9.7 7.0 63.0 315/11 + * C11 210 180 3,200 9.7 7.0 62.0 265303 DIN 55029 Type 265303 * Spindle max.torqueNmmax.clamping powerkNmax. speedmin -1Travel/jawmmTooth pitchmmWeightkgDIN55029 160/4  * D4  70  60 5,200 6.5 4.8 10.1 160/5  * D5  70  60 5,200 6.5 4.8 10.3 160/6  * D6  70  60 5,200 6.5 4.8 10.0 200/4  * D4 100  95 4,600 6.8 4.8 19.5 DIN 55029 200/5  * D5 100  95 4,600 6.8 4.8 19.5 ISO 702/II 200/6  * D6 100  95 4,600 6.8 4.8 19.8 ASA B5.9 D 250/5 + * D5 200 160 4,000 7.5 6.0 34.5 250/6 + * D6 200 160 4,000 7.5 6.0 35.4 250/8 + * D8 200 160 4,000 7.5 6.0 35.5 315/6 + * D6 210 180 3,200 9.7 7.0 65.0 315/8 + * D8 210 180 3,200 9.7 7.0 66.0 315/11 + * D11 210 180 3,200 9.7 7.0 66.0 Accessories for manual chuck Rota-S Design: Design: - special grease LINOMAX semi-synthetic - for base jaws type M - homogeneous, highly water-resistant grease - minimum order: 30 pieces paste based on a specially selected mineral oil/ - quality 12.9 synthetic oil combination with a high proportion of compatible highly effective micro-white solid lubricants Product properties: - constant low friction coefficients - very high adhesion - extreme reduction of fretting corrosion risk - light-coloured, clean in application and use - corrosion protection and water resistance - not subject to labelling requirements - very high pressure resistance G - long tool life - suitable for non-ferrous metals L 265310 Special grease for grease guns 265311 Fastening screw for base jaw type M Type 265310 Design Type 265311 DimensionsG×L Fitting for 0500  Special grease cartridge 0.5 kg 0822  M8  × 22 EWB-MT 210 1000  Special grease can 1.0 kg 1235  M12 × 35 GBK 400 | EWB-MT 315 26/554 www.precitool.de
