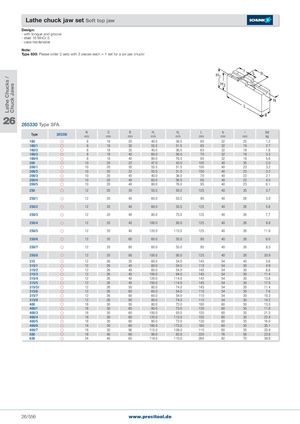

Lathe Chucks / Chuck Jaws Lathe chuck jaw set Soft top jaw Design: - with tongue and groove - steel 16 MnCr 5 - case-hardenable Note: Type 630: Please order 2 sets with 3 pieces each = 1 set for a six-jaw chuck! H1 I S b H2 N L B 26 265330 Type SFA Type 265330 Nmm Smm Bmm H1mm H2 L b l Setmmmmmmmmkg 160 8 18 20 40.0 36.0 85 32 25 1.2 160/1 8 18 30 55.5 51.5 85 32 19 2.7 160/2 8 18 35 40.0 36.0 63 32 19 1.6 160/3 8 18 40 60.0 56.0 70 32 19 3.3 160/4 8 18 40 80.0 76.0 85 32 19 5.6 200 10 20 22 47.0 43.0 105 40 35 2.0 200/1 10 20 30 55.5 51.5 100 40 23 3.2 200/2 10 20 22 55.5 51.5 100 40 23 2.2 200/3 10 20 40 40.0 36.0 70 40 23 2.1 200/4 10 20 40 60.0 56.0 85 40 23 4.0 200/5 10 20 40 80.0 76.0 95 40 23 6.1 250 12 20 30 55.5 50.5 125 40 35 3.7 250/1 12 20 40 60.0 55.5 90 40 26 3.9 250/2 12 20 40 60.0 55.5 125 40 26 5.6 250/3 12 20 40 80.0 75.0 125 40 26 7.7 250/4 12 20 40 100.0 95.0 125 40 26 9.8 250/5 12 20 40 120.0 115.0 125 40 26 11.8 250/6 12 20 60 60.0 55.0 90 40 26 6.0 250/7 12 20 80 60.0 55.0 90 40 26 8.5 250/8 12 20 80 100.0 95.0 125 40 26 20.9 315 12 26 35 60.0 54.0 145 54 45 5.6 315/1 12 26 40 60.0 54.0 110 54 30 4.9 315/2 12 26 40 60.0 54.0 145 54 30 6.6 315/3 12 26 40 100.0 94.0 145 54 30 11.4 315/4 12 26 40 120.0 114.0 145 54 30 13.8 315/5 12 26 40 150.0 114.0 145 54 30 17.5 315/51 12 26 50 80.0 74.0 145 54 30 11.4 315/6 12 26 60 60.0 54.0 110 54 30 7.6 315/7 12 26 80 60.0 54.0 110 54 30 10.3 315/8 12 26 80 80.0 74.0 110 54 30 14.2 400 18 30 50 80.0 73.0 180 60 50 13.5 400/1 18 30 60 80.0 73.0 130 60 35 11.8 400/3 18 30 60 100.0 93.0 155 60 35 21.5 400/4 18 30 60 120.0 113.0 155 60 35 22.4 400/5 18 30 80 80.0 73.0 130 60 35 16.0 400/6 18 30 60 180.0 173.0 160 60 35 35.1 400/7 18 30 96 115.0 108.0 115 60 35 25.9 500 18 40 60 90.0 82.0 220 76 58 23.9 630 24 40 65 118.0 110.0 260 82 70 39.6 26/556 www.precitool.de
