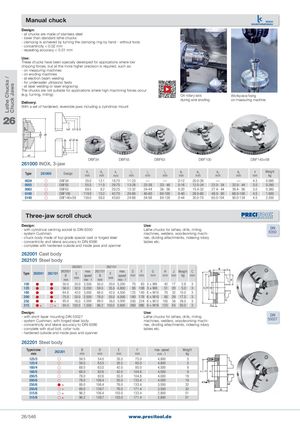

Lathe Chucks / Chuck Jaws F ) 'D *(E + Manual chuck Design: - all chucks are made of stainless steel - lower than standard lathe chucks - clamping is achieved by turning the clamping ring by hand - without tools - concentricity < 0.02 mm - repeating accuracy < 0.01 mm Use: These chucks have been specially developed for applications where low chipping forces, but all the more higher precision is required, such as: - on measuring machines - on eroding machines - at electron beam welding - for underwater ultrasonic tests - at laser welding or laser engraving The chucks are not suitable for applications where high machining forces occur (e.g. turning, milling) On rotary axis Workpiece fixing during wire eroding on measuring machine Delivery: With a set of hardened, reversible jaws including a cylindrical mount 26 DBF34 DBF55 DBF63 DBF100 DBF140×58 261000 INOX, 3-jaw Type 261000 Design d 1 d 2 x1 i 1 i 2mmmmmmmmmmi a a31 2mmmmmm a 3mm a s Weight4mmmmkg 0034  DBF34  35.0 12.1 18.70 11-23 — — 0-12 20.0-26 — — 4.3 0.085 0055  DBF55  55.5 11.0 29.75 13-28 23-38 33- 48 0-16 12.0-24 22.0- 34 32.0- 44 3.0 0.280 0063  DBF63  69.5  8.2 29.25 12-32 24-44 36- 56 0-20 15.4-32 27.4- 44 39.4- 56 3.0 0.380 0100  DBF100 119.0 15.2 42.70 20-60 40-80 60-100 0-40 28.0-60 48.0- 80 68.0-100 4.5 1.600 0140  DBF140×58 138.0 58.0 43.60 24-68 54-98 84-128 0-44 30.0-74 60.0-104 90.0-134 4.5 2.200 Three-jaw scroll chuck Design: Use: - with cylindrical centring socket to DIN 6350 Lathe chucks for lathes, drills, milling- system Cushmanmachines, welders, woodworking machi- DIN6350 - chuck body made of top-grade special cast or forged steel nes, dividing attachments, indexing rotary - concentricity and lateral accuracy to DIN 6386 tables etc. - complete with hardened outside and inside jaws and spanner 262001 Cast body 262101 Steel body 262001 262101Type262001262101262001BmmEmmmax.speedmin -1262101BmmEmmmax.speedmin -1DFmmmmGmmHJWeightCmmmmkgmm % - 100   50.0   20.0 3,500 50.0   20.0 5,200  70  83 3 × M8  42 17  2.8 3 125   56.0   32.0 3,200 59.5   35.5 4,800  95 108 3 × M8  51 20  5.0 3 160   64.0   42.0 3,000 68.0   42.0 4,500 125 140 6 × M10  70 32 10.0 3 200   75.0  55.0 2,500 78.0  55.0 4,000 160 176 6 × M10  85 29 17.5 3 250  + 85.0   76.0 2,000 89.0   76.0 3,500 200 224 6 × M12 105 34 29.0 3 315 + + 94.0 103.0 1,500 96.2 103.0 2,800 260 286 6 × M16 125 43 50.0 3 & Design: Use: - with short taper mounting DIN 55027 Lathe chucks for lathes, drills, milling- system Cushman, with forged steel bodymachines, welders, woodworking machi-DIN55027 - concentricity and lateral accuracy to DIN 6386 nes, dividing attachments, indexing rotary - complete with stud bolt, collar nuts tables etc. - hardened outside and inside jaws and spanner 262201 Steel body Type/conemm 262201 B D Emmmmmm Fmm max. speed Weightmin -1kg 125/3   59.5  54.0  35.5  75.0 4,800 5 125/4  59.5  63.5  35.5  85.0 4,800 5 160/4  68.0  63.5  42.0  85.0 4,500 9 160/5  68.0  82.6  42.0 104.8 4,500 9 200/5  78.0  82.6  55.0 104.8 4,000 19 200/6  78.0 106.4  55.0 133.4 4,000 19 250/6 + 89.0 106.4  76.0 133.4 3,500 32 250/8 + 89.0 139.7  76.0 171.4 3,500 32 B 315/6 + 96.2 106.4 103.0 133.4 2,800 51 315/8 + 96.2 139.7 103.0 171.4 2,800 51 26/546 www.precitool.de
