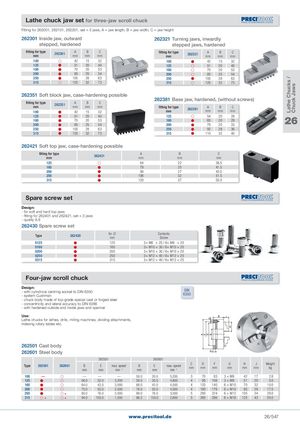

Общий каталог PRECITOOL - страница 552

$ ) ' *( + Lathe Chucks / Chuck Jaws Lathe chuck jaw set for three-jaw scroll chuck Fitting for 262001, 262101, 262201, set = 3 jaws, A = jaw length, B = jaw width, C = jaw height 262301 Inside jaw, outward 262321 Turning jaws, inwardly stepped, hardened stepped jaws, hardened fitting for typemm 262301 Amm Bmm Cmm fitting for typemm 262321 Amm Bmm Cmm 100  42 15 32 100  42 15 32 125  51 20 40 125  51 20 40 160  70 20 53 160  70 20 53 200  85 25 54 200  85 25 54 250  105 28 63 250  105 28 63 315  125 32 73 315  125 32 73 262351 Soft block jaw, case-hardening possible 262381 Base jaw, hardened, (without screws) fitting for typemm 262351 Amm Bmm Cmm100421532 fitting for typemm 262381 Amm Bmm Cmm 125  51 20 40160702053200852554 125  54 20 28160652029200792533 26 250  105 28 63 250  92 28 36 315  125 32 73 315  110 32 40 262421 Soft top jaw, case-hardening possible fitting for typemm 262421 Amm Bmm Cmm 125  64 22 38.5 160  78 25 41.5 200  90 27 43.5 250  106 32 51.5 315  120 37 55.0 Spare screw set Design: - for soft and hard top jaws - fitting for 262401 and 262421, set = 3 jaws - quality 8.8 262430 Spare screw set Type 262430 for mm ContentsScrew 0125  125 3× M8  × 25 / 6× M8  × 20 0160  160 3× M10 × 30 / 6× M10 × 20 0200  200 3× M10 × 30 / 6× M10 × 20 0250  250 3× M12 × 40 / 6× M12 × 25 0315  315 3× M12 × 40 / 6× M12 × 25 Four-jaw scroll chuck Design: - with cylindrical centring socket to DIN 6350 DIN - system Cushman 6350 - chuck body made of top-grade special cast or forged steel - concentricity and lateral accuracy to DIN 6386 - with hardened outside and inside jaws and spanner Use: % - Lathe chucks for lathes, drills, milling machines, dividing attachments, indexing rotary tables etc. 262501 Cast body 262601 Steel body & 262501 262601 Type 262501 262601 Bmm E max. speedmmmin -1Bmm Emm max. speedmin -1 C D Fmmmmmm Gmm H J Weightmmmmkg 100 —  — — — 50.0  20.0 5,200 3  70  83 3 × M8  42 17  2.8 125   56.0  32.0 3,200 59.5  35.5 4,800 4  95 108 3 × M8  51 20  5.0 160   64.0  42.0 3,000 68.0  42.0 4,500 4 125 140 6 × M10  70 32 10.0 200   75.0  55.0 2,500 78.0  55.0 4,000 4 160 176 6 × M10  85 29 17.5 250  + 85.0  76.0 2,000 89.0  76.0 3,500 5 200 224 6 × M12 105 34 29.0 315 + + 94.0 103.0 1,500 96.2 103.0 2,800 5 260 286 6 × M16 125 43 50.0 www.precitool.de 26/547
