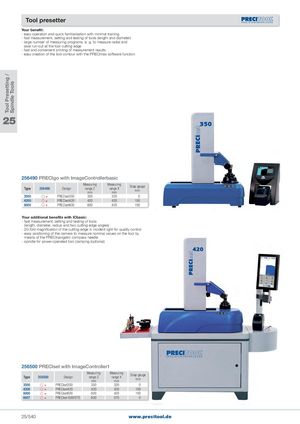

Общий каталог PRECITOOL - страница 545

Tool Presetting / Spindle Tools Tool presetter Your benefit: - easy operation and quick familiarisation with minimal training - fast measurement, setting and testing of tools (length and diameter) - large number of measuring programs, e. g. to measure radial and axial run-out at the tool cutting edge - fast and convenient printing of measurement results - easy creation of the tool contour with the PRECImax software function 25 256490 PRECIgo with ImageControllerbasic Type 256490 Design Measuringrange ZmmMeasuringrange XmmSnap gaugemm 3500 + PRECIset350 350 320 0 4200 + PRECIset420 420 420 100 6000 + PRECIset600 600 420 100 Your additional benefits with ICbasic: - fast measurement, setting and testing of tools (length, diameter, radius and two cutting edge angles) - 20-fold magnification of the cutting edge in incident light for quality control - easy positioning of the camera to measure nominal values on the tool by means of the PRECInavigator compass needle - spindle for power-operated tool clamping (optional) 256500 PRECIset with ImageController1 Type 256500 Design Measuringrange ZmmMeasuringrange XmmSnap gaugemm 3500 + PRECIset350 350 320 0 4200 + PRECIset420 420 420 100 6000 + PRECIset600 600 420 100 6057 + PRECIset 600/570 600 570 0 25/540 www.precitool.de
