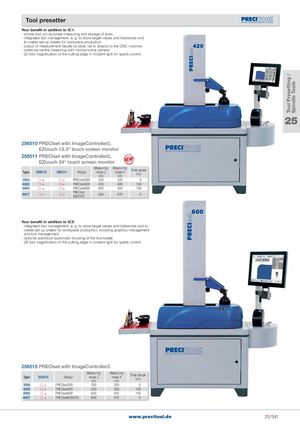

Tool Presetting / Spindle Tools Tool presetter Your benefit in addition to IC1: - simple and µm-accurate measuring and storage of tools - integrated tool management, e. g. to store target values and tolerances and to create set-up sheets for workpiece production - output of measurement results by label, list or directly to the CNC machine - rotational centre measuring with monochrome camera - 20-fold magnification of the cutting edge in incident light for quality control 25 256510 PRECIset with ImageController2, EZtouch 13.3“ touch screen monitor 256511 PRECIset with ImageController2, EZtouch 24“ touch screen monitor Type 256510 256511 Design Measuringrange ZmmMeasuringrange XmmSnap gaugemm 3500 + + PRECIset350 350 320 0 4200 + + PRECIset420 420 420 100 6000 + + PRECIset600 600 420 100 6057 + + PRECIset600/570 600 570 0 Your benefit in addition to IC2: - integrated tool management, e. g. to store target values and tolerances and to create set-up sheets for workpiece production, including graphics management and tool management - optional autofocus (automatic focusing of the tool blade) - 28-fold magnification of the cutting edge in incident light for quality control 256515 PRECIset with ImageController3 Type 256515 Design Measuringrange ZmmMeasuringrange XmmSnap gaugemm 3500 + PRECIset350 350 320 0 4200 + PRECIset420 420 420 100 6000 + PRECIset600 600 420 100 6057 + PRECIset600/570 600 570 0 www.precitool.de 25/541
