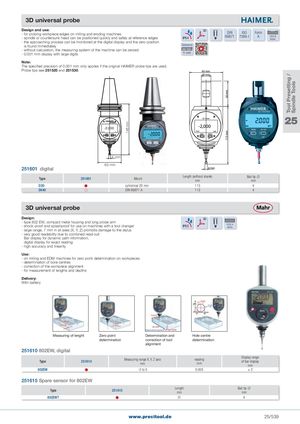

148 mm Tool Presetting / Spindle Tools 3D universal probe Design and use:- for probing workpiece edges on milling and eroding machines- spindle or countersunk head can be positioned quickly and safely at reference edges 3D DIN ISO FormIP64698717388-1A1835 Bshank - the approaching process can be monitored at the digital display and the zero position is found immediately Delivered - without calculation, the measuring system of the machine can be zeroed - 0.001 mm display with large digits in case Note: The specified precision of 0.001 mm only applies if the original HAIMER probe tips are used. Probe tips see 251520 and 251530. 3D-TASTER 25 -2,000 mm set MOD ON/OFF E SET 4 mm 65 mm 251601 digital Type 251601 Mount Length (without shank) Ball tip mmmm D3D  cylindrical 20 mm 113 4 SK40  DIN 69871 A 113 4 3D universal probe Design: 3D - type 802 EW, compact metal housing and long probe arm - shock-proof and splashproof for use on machines with a tool changer IP65 1835 Ashank - large range, 7 mm in all axes (X, Y, Z) prohibits damage to the stylus - very good readability due to combined read-out: Bar display for dynamic path information, digital display for exact reading - high accuracy and linearity Use: - on milling and EDM machines for zero point determination on workpieces - determination of bore centres - correction of the workpiece alignment - for measurement of lengths and depths Delivery: With battery Measuring of lenght Zero point Determination and Hole centre determination correction of tool determination alignment 251610 802EW, digital Type 251610 Measuring range X, Y, Z axismm readingmm Display rangeof bar displaymm 802EW  -2 to 5 0.005 ±2 251615 Spare sensor for 802EW Type 251615 Lengthmm Ball tip mm 802EWT  31 4 www.precitool.de 25/539
