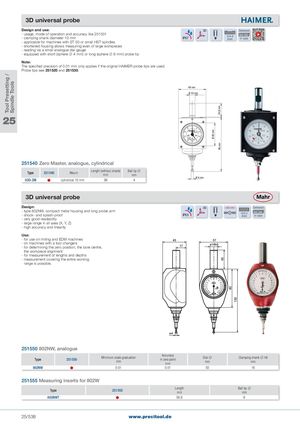

Tool Presetting / Spindle Tools 3D universal probe Design and use: 3D Delivered - usage, mode of operation and accuracy like 251501 - clamping shank diameter 10 mm IP67 1835 Bshankin case - applicable for machines with ST 30 or small HST spindles - shortened housing allows measuring even of large workpieces - reading via a small analogue dial gauge - equipped with short (sphere  4 mm) or long (sphere  8 mm) probe tip Note: The specified precision of 0.01 mm only applies if the original HAIMER probe tips are used. Probe tips see 251520 and 251530. 25 251540 Zero Master, analogue, cylindrical Type 251540 Mount Length (without shank) Ball tip mmmm U3D-ZM  cylindrical 10 mm 96 4 3D universal probe Design: 3D calibrated Delivered - type 802NW, compact metal housing and long probe arm - shock- and splash-proof IP65 1835 Ashankin case - very good readability - large range in all axes (X, Y, Z) - high accuracy and linearity Use: - for use on milling and EDM machines - on machines with a tool changers - for determining the zero position, the bore centre, the workpiece alignment - for measurement of lengths and depths - measurement covering the entire working range is possible. 251550 802NW, analogue Type 251550 Minimum scale graduationmm Accuracyin zero pointmm Dial mm Clamping shank  h6mm 802NW  0.01 0.01 50 16 251555 Measuring inserts for 802W Type 251555 Lengthmm Ball tip mm 802NWT  56.6 6 25/538 www.precitool.de
