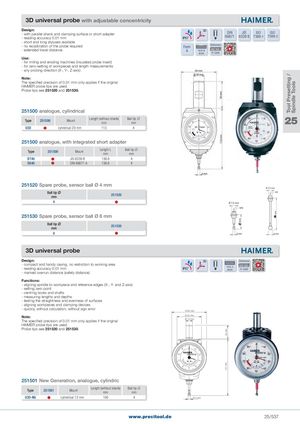

25 mm101 mm Tool Presetting / Spindle Tools 3D universal probe with adjustable concentricity Design:- with parallel shank and clamping surface or short adapter- reading accuracy 0.01 mm 3D DIN JIS ISO ISOIP67698716339 B7388-17388-2 - short and long styluses available - no recalibration of the probe required Form Delivered - extended travel distance A 1835 Bshank in case Use: - for milling and eroding machines (insulated probe insert) - for zero-setting of workpieces and length measurements - any probing direction (X-, Y-, Z-axis) Note: The specified precision of 0.01 mm only applies if the original HAIMER probe tips are used. Probe tips see 251520 and 251530. 251500 analogue, cylindrical Type 251500 Mount Length (without shank) Ball tip mmmm 25 U3D  cylindrical 20 mm 113 4 251500 analogue, with integrated short adapter Type 251500 Mount Length L Ball tip mmmm BT40  JIS 6339 B 138.6 4 SK40  DIN 69871 A 138.6 4 251520 Spare probe, sensor ball Ø 4 mm Ball tip mm 251520 4  251530 Spare probe, sensor ball Ø 8 mm Ball tip mm 251530 8  3D universal probe Design: 3D Delivered - compact and handy casing, no restriction to working area - reading accuracy 0.01 mm IP67 1835 Ashank in case - marked overrun distance (safety distance) Functions: - aligning spindle to workpiece and reference edges (X-, Y- and Z-axis) - setting zero point - centring bores and shafts - measuring lengths and depths - testing the straightness and evenness of surfaces - aligning workpieces and clamping devices - quickly, without calculation, without sign error Ø 62 mm Note: Ø 44 mm The specified precision of 0.01 mm only applies if the original Ø 12 mm HAIMER probe tips are used. Probe tips see 251520 and 251530. 0 90 10 9010 2080 8020 270 0,01 mm -2 30 30 1 -10 70 60 40 60 40 50 251501 New Generation, analogue, cylindric Type 251501 Mount Length (without shank) Ball tip mmmm U3D-NG  cylindrical 12 mm 100 4 Ø 4 mm www.precitool.de 25/537
