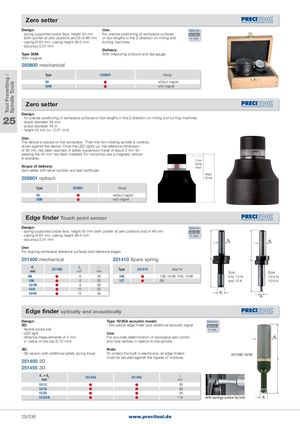

Общий каталог PRECITOOL - страница 541

Tool Presetting / Spindle Tools Zero setter Design: Use: Delivered - spring supported probe face, height 50 mm For precise positioning of workpiece surfaces (with pointer at zero position) and Ø of 48 mm or tool lengths in the Z-direction on milling and in case - casing Ø 65 mm, casing height 49.5 mm turning machines - accuracy 0.01 mm Delivery: Type 50M: With measuring protocol and dial gauge. With magnet. 250800 mechanical Type 250800 Design 50  without magnet 50M  with magnet Zero setter Design: 25 - for precise positioning of workpiece surfaces or tool lengths in the Z-direction on milling and turning machines- shank diameter 39 mm - probe diameter 19 m - height 50 mm (+/- 0.01 mm) Use: The device is placed on the workpiece. 'Then the non-rotating spindle is carefully driven against the device. Once the LED lights up, the reference dimension of 50 mm has been reached. A safety suspension travel of about 2 mm for passing the 50 mm has been installed. For horizontal use a magnetic version is available. 2 mm spring Scope of delivery: travel Zero setter with serial number and test certificate. Height 250801 optisch 50 mm 250801Typoeptical 250801 Design 50  without magnet 50M  with magnet Edge finder Touch point sensor Design: Delivered - spring supported probe face, height 50 mm (with pointer at zero position) and of 48 mm - casing Ø 65 mm, casing height 49.5 mm in case - accuracy 0.01 mm Use: For aligning workpiece reference surfaces and reference edges. 251400 mechanical 251410 Spare spring d1mm 251400 d2mm l1mm Type 251410 Ideal for Size: Size: 6N  6 48 106  10N, 10/4N, 10/K, 10/4K 6 N, 10 N 10/4 N     10N  8 82 107  6N and 10 K 10/4 K 10/4N  8 88 10/K  10 82 10/4K  10 88 Edge finder optically and acoustically Design: Type 10/20A acoustic model: Delivered 2D: - like optical edge finder plus additional acoustic signal - flexible probe ball in case - LED light Use: - distance measurements of 5 mm For accurate determination of workpiece zero points (= radius of the ball Ø 10 mm) and hole centres in relation to the spindle. 3D: Note: - 3D version with additional safety spring travel To protect the built-in electronics, all edge finders 251450 10/20 must be secured against the ingress of moisture. 251450 2D 251455 3D d1 × d2mm 251450 251455 l1mm 10/12   99 10/16   99 10/20   94 10/20/A   119 with springy probe tip ball 25/536 www.precitool.de
