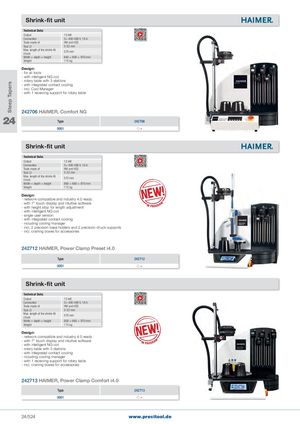

Общий каталог PRECITOOL - страница 529

Steep Tapers Shrink-fit unit Technical Data: Output 13 kW Connection 3× 400-480 V, 16 A Tools made of HM and HSS Tool  3-32 mm Max. length of the shrink-fitchuck 570 mm Width × depth × height 840 × 600 × 970 mm Weight 115 kg Design: - for all tools - with intelligent NG coil - rotary table with 3 stations - with integrated contact cooling - incl. Cool Manager - with 1 receiving support for rotary table 242706 HAIMER, Comfort NG 24 Type 242706 0001 + Shrink-fit unit Technical Data: Output 13 kW Connection 3× 400-480 V, 16 A Tools made of HM and HSS Tool  3-32 mm Max. length of the shrink-fitchuck 570 mm Width × depth × height 860 × 660 × 970 mm Weight 115 kg Design: - network-compatible and industry 4.0 ready - with 7” touch display and intuitive software - with height stop for length adjustment - with intelligent NG coil - single-user version - with integrated contact cooling - including cooling manager - incl. 2 precision base holders and 2 precision chuck supports - incl. craining boxes for accessories 242712 HAIMER, Power Clamp Preset i4.0 Type 242712 0001 + Shrink-fit unit Technical Data: Output 13 kW Connection 3× 400-480 V, 16 A Tools made of HM and HSS Tool  3-32 mm Max. length of the shrink-fitchuck 570 mm Width × depth × height 850 × 660 × 970 mm Weight 115 kg Design: - network-compatible and industry 4.0 ready - with 7” touch display and intuitive software - with intelligent NG coil - rotary table with 3 stations - with integrated contact cooling - including cooling manager - with 1 receiving support for rotary table - incl. craining boxes for accessories 242713 HAIMER, Power Clamp Comfort i4.0 Type 242713 0001 + 24/524 www.precitool.de
