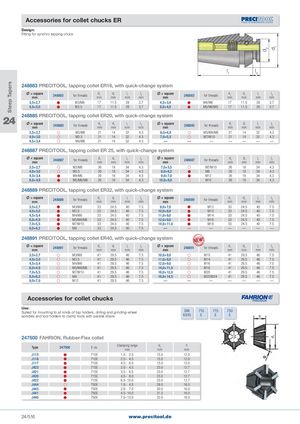

Общий каталог PRECITOOL

Fitting for synchro tapping chuck

l l

1 2

248883 PRE	CITOOL,	tapping co	llet ER	16, wit	h quic	k-chan	ge system
× square mm	248883	for threads	d1 mm	d² mm	l1 mm	l2 mm	× square mm	248883	for threads	d1 mm	d² mm	l1 mm	l2 mm
3,5×2,7		M3/M8	17	11�5	28	3�7	4,5×3,4		M4/M6	17	11�5	28	3�7
4,0×3,0		M3�5	17	11�5	28	3�7	6,0×4,9		M5/M6/M8	17	11�5	28	3�7
248885 PRE	CITOOL,	tapping co	llet ER	20, wit	h quic	k-chan	ge system
× square	248885	for threads	d1	d²	l1	l2	× square	248885	for threads	d1	d²	l1	l2
mm			mm	mm	mm	mm	mm			mm	mm	mm	mm
3,5×2,7		M3/M8	21	14	32	4�3	6,0×4,9		M5/M6/M8	21	14	32	4�3
4,0×3,0		M3�5	21	14	32	4�3	7,0×5,5		M7/M10	21	14	32	4�3
4,5×3,4		M4/M6	21	14	32	4�3	—	—	—	—	—	—	—
248887 PRE	CITOOL,	tapping co	llet ER	25, wi	th qui	ck-chan	ge system
× square	248887	for threads	d1	d²	l1	l2	× square	248887	for threads	d1	d²	l1	l2
mm			mm	mm	mm	mm	mm			mm	mm	mm	mm
3,5×2,7		M3/M8	26	18	34	4�3	7,0×5,5		M7/M10	26	18	34	4�3
4,0×3,0		M3�5	26	18	34	4�3	8,0×6,2		M8	26	18	34	4�3
4,5×3,4		M4/M6	26	18	34	4�3	9,0×7,0		M12	26	18	34	4�3
60×49		M5/M6/M8	26	18	34	43	100×80		M10	26	18	34	43
,, 248889 PRE	CITOOL,	tapping co	llet ER	32, wit	h quic	� k-chan	,, ge system						�
× square	248889	for threads	d1	d²	l1	l2	× square	248889	for threads	d1	d²	l1	l2
mm			mm	mm	mm	mm	mm			mm	mm	mm	mm
3,5×2,7		M3/M8	33	24�5	40	7�5	9,0×7,0		M12	33	24�5	40	7�5
4,0×3,0		M3�5	33	24�5	40	7�5	10,0×8,0		M10	33	24�5	40	7�5
4,5×3,4		M4/M6	33	24�5	40	7�5	11,0×9,0		M14	33	24�5	40	7�5
6,0×4,9		M5/M6/M8	33	24�5	40	7�5	12,0×9,0		M16	33	24�5	40	7�5
7,0×5,5		M7/M10	33	24�5	40	7�5	14,0×11,0		M18	33	24�5	40	7�5
8,0×6,2		M8	33	24�5	40	7�5	—	—	—	—	—	—	—
248891 PRE	CITOOL,	tapping co	llet ER	40, wit	h quic	k-chan	ge system
× square	248891	for threads	d1	d²	l1	l2	× square	248891	for threads	d1	d²	l1	l2
mm			mm	mm	mm	mm	mm			mm	mm	mm	mm
3,5×2,7		M3/M8	41	29�5	46	7�5	10,0×8,0		M10	41	29�5	46	7�5
4,0×3,0		M3�5	41	29�5	46	7�5	11,0×9,0		M14	41	29�5	46	7�5
4,5×3,4		M4/M6	41	29�5	46	7�5	12,0×9,0		M16	41	29�5	46	7�5
6,0×4,9		M5/M6/M8	41	29�5	46	7�5	14,0×11,0		M18	41	29�5	46	7�5
7,0×5,5		M7/M10	41	29�5	46	7�5	16,0×12,0		M20	41	29�5	46	7�5
8,0×6,2		M8	41	29�5	46	7�5	18,0×14,5		M22/M24	41	29�5	46	7�5
9,0×7,0 Access	 ories f	M12 or collet	41 chuc	29�5 ks	46	7�5	—	—	—	—	—	—	—
Use:
Suited for mount	ing to all kin	ds of tap holder	s drilling	and grin	ding-whe	el		DIN	710 715	750
spindles and too	l holders to c	lamp tools with	, parallel	shank				6345	E E	E

247500 FAHRION, Rubber-Flex collet

Type	247500	E no�	Clamping range mm	d1 mm	h mm
J115		710E	1�0 - 2�5	15�0	12�0
J116		710E	2�5 - 4�5	15�0	12�0
J117		710E	4�5 - 6�5	15�0	12�0
J423		715E	2�0 - 4�5	23�0	12�7
J421		715E	3�5 - 6�5	23�0	12�7
J420		715E	4�5 - 8�0	23�0	12�7
J422		715E	6�5 - 10�0	23�0	12�7
J444		750E	1�8 - 4�5	28�0	16�0
J443		750E	2�8 - 7�0	30�5	16�0
J441		750E	4�5 - 10�0	31�5	16�0
J440		750E	7�0 - 13�0	32�0	16�0
