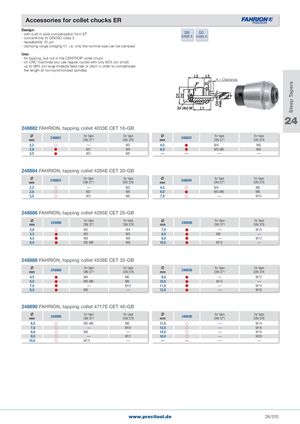

Общий каталог PRECITOOL - страница 520

Steep Tapers Accessories for collet chucks ER Design: - with built-in axial compensation form ET- concentricity to DIN/ISO class 2 DIN ISO6499 A15488-A - repeatability 10 µm - clamping range bridging h7, i.e. only the nominal size can be clamped Use: - for tapping, but not in the CENTROIP collet chuck - on CNC machines you use regular cycles with only 95% (on small) up to 99% (on large threads) feed rate or pitch in order to compensate the length at non-synchronised spindles A = Clearance 24 248882 FAHRION, tapping collet 4033E CET 16-GB mm 248882 for tapsDIN 371 for tapsDIN 376 mm 248882 for tapsDIN 371 for tapsDIN 376 2,2  — M3 4,5  M4 M6 2,8  M2 M4 6,0  M5-M6 M8 3,5  M3 M5 — — — — 248884 FAHRION, tapping collet 4284E CET 20-GB mm 248884 for tapsDIN 371 for tapsDIN 376 mm 248884 for tapsDIN 371 for tapsDIN 376 2,2  — M3 4,5  M4 M6 2,8  M2 M4 6,0  M5-M6 M8 3,5  M3 M5 7,0  — M10 248886 FAHRION, tapping collet 4285E CET 25-GB mm 248886 for tapsDIN 371 for tapsDIN 376 mm 248886 for tapsDIN 371 for tapsDIN 376 2,8  M2 M4 7,0  — M10 3,5  M3 M5 8,0  M8 — 4,5  M4 M6 9,0  — M12 6,0  M5-M6 M8 10,0  M10 — 248888 FAHRION, tapping collet 4538E CET 32-GB mm 248888 for tapsDIN 371 for tapsDIN 376 mm 248888 for tapsDIN 371 for tapsDIN 376 4,5  M4 M6 9,0  — M12 6,0  M5-M6 M8 10,0  M10 — 7,0  — M10 11,0  — M14 8,0  M8 — 12,0  — M16 248890 FAHRION, tapping collet 4717E CET 40-GB mm 248890 for tapsDIN 371 for tapsDIN 376 mm 248890 for tapsDIN 371 for tapsDIN 376 6,0  M5-M6 M8 11,0  — M14 7,0  — M10 12,0  — M16 8,0  M8 — 14,0  — M18 9,0  — M12 16,0  — M20 10,0  M10 — — — — — www.precitool.de 24/515
