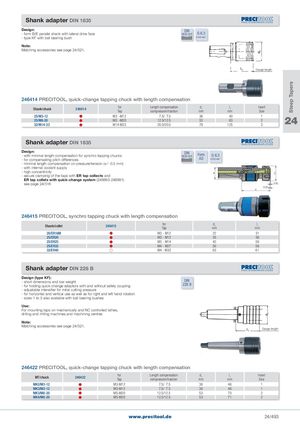

Общий каталог PRECITOOL - страница 498

D d1 Steep Tapers Shank adapter DIN 1835 Design:- form B/E parallel shank with lateral drive face DIN1835 B/EG 6,3 - type KF with ball bearing bush 8.000 min-1 Note: Matching accessories see page 24/521. Gauge length 246414 PRECITOOL, quick-change tapping chuck with length compensation Shank/chuck 246414 for Length compensation d1 l1 InsertTapcompression/tractionmmmmSize 25/M3-12  M3 -M1225/M8-20M5 -M2032/M14-33M14-M33 7.5/ 7.512.5/12.520.0/20.036 40536378125 123 24 Shank adapter DIN 1835 Design:- with minimal length compensation for synchro tapping chucks- for compensating pitch differences DIN1835 B/EFormAD G 6,38.000 min-1 - minimal length compensation on pressure/tension (+/- 0.5 mm) - with internal coolant supply - high concentricity - secure clamping of the taps with ER tap collects and ER tap collets with quick-change system (248883-248891) see page 24/516 0.50 0.50 l1 246415 PRECITOOL, synchro tapping chuck with length compensation Shank/collet 246415 forTap d l1 1mmmm 20/ER16M  M3 - M12 22 51 25/ER20  M3 - M12 35 56 25/ER25  M3 - M14 42 56 25/ER32  M4 - M27 50 56 32/ER40  M4 - M33 63 61 Shank adapter DIN 228 B Design (type KF): - short dimensions and low weight DIN - for holding quick-change adaptors with and without safety coupling 228 B - adjustable intensifier for initial cutting pressure - for horizontal and vertical use as well as for right and left hand rotation - sizes 1 to 3 also available with ball bearing bushes Use: For mounting taps on mechanically and NC controlled lathes, drilling and milling machines and machining centres Note: Matching accessories see page 24/521. Gauge length 246422 PRECITOOL, quick-change tapping chuck with length compensation MT/chuck 246422 for Length compensation d l Insert11Tapcompression/tractionmmmmSize MK2/M3-12  M3-M12  7.5/ 7.5 36 46 1 MK3/M3-12  M3-M12  7.5/ 7.5 36 46 1 MK3/M8-20  M5-M20 12.5/12.5 53 70 2 MK4/M8-20  M5-M20 12.5/12.5 53 71 2 www.precitool.de 24/493
