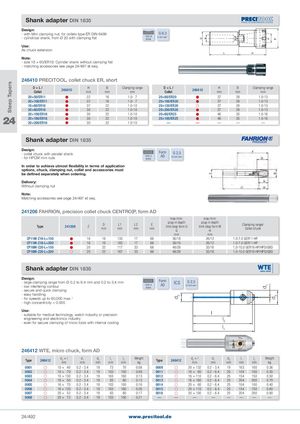

Общий каталог PRECITOOL - страница 497
Навигация
| 1835 B G 6,3 - with Mini clamping nut, for collets type ER DIN 6499 |
| shank 8.000 min-1 - cylindrical shank, from Ø 20 with clamping flat |
Use: As chuck extension
Note: - size 16 × 60/ER16: Cylinder shank without clamping flat - matching accessories see page 24/497 et seq.
246410 PRECITOOL, collet chuck ER, short
| D × L / Collet | 246410 | H mm | B mm | Clamping range mm | D × L / Collet | 246410 | H mm | B mm | Clamping range mm |
| 20×50/ER11 | | 22 | 16 | 1�0- 7 | 20×60/ER20 | | 37 | 28 | 1�0-13 |
| 20×100/ER11 | | 22 | 16 | 1�0- 7 | 20×100/ER20 | | 37 | 28 | 1�0-13 |
| 16×60/ER16 | | 37 | 22 | 1�0-10 | 20×120/ER20 | | 37 | 28 | 1�0-13 |
| 20×60/ER16 | | 30 | 22 | 1�0-10 | 20×200/ER20 | | 37 | 28 | 1�0-13 |
| 20×100/ER16 | | 30 | 22 | 1�0-10 | 20×60/ER25 | | 46 | 35 | 1�0-16 |
| 20×160/ER16 | | 30 | 22 | 1�0-10 | 20×100/ER25 | | 46 | 35 | 1�0-16 |
| 20×200/ER16 | | 30 | 22 | 1�0-10 | — | — | — | — | — |
Shank adapter DIN 1835
Design: Form G 2,5 - collet chuck with parallel shank 1835 A AD - for HPCM mini nuts 25.000 min-1 shank In order to achieve utmost flexibility in terms of application options, chuck, clamping nut, collet and accessories must be defined separately when ordering.
Delivery: Without clamping nut
Note: Matching accessories see page 24/497 et seq.
241206 FAHRION, precision collet chuck CENTRO|P, form AD
| Type | 241206 | Z | D mm | L1 mm | L2 mm | E mm | max�/min� plug-in depth limit-stop form U G | max�/min� plug-in depth limit-stop form W H | Clamping range/ Collet chuck |
| mm | mm | ||||||||
| CP11M-Z16-L=150 | | 16 | 16 | 133 | 17 | 68 | 36/18 | 26/12 | 1�0-7�0 GER11-HP |
| CP11M-Z16-L=200 | | 16 | 16 | 183 | 17 | 68 | 36/18 | 26/12 | 1�0-7�0 GER11-HP |
| CP16M-Z20-L=150 | | 20 | 22 | 117 | 33 | 68 | 48/28 | 35/16 | 1,0-10,0 GER16-HP/HPD/GBD |
| CP16M-Z20-L=200 | | 20 | 22 | 167 | 33 | 68 | 48/28 | 35/16 | 1,0-10,0 GER16-HP/HPD/GBD |
Shank adapter DIN 1835
Design:
| - large clamping range from Ø 0.2 to 6.4 mm and 0.2 to 3.4 mm - low interfering contour - secure and quick clamping - easy handling - for speeds up to 60,000 max.-1 - high concentricity < 0.005 | 1835 A shank | Form AD | ICS d2 | G 2,5 25.000 min-1 | d1 d3 |
| Use: - suitable for medical technology, watch industry or precision engineering and electronics industry - even for secure clamping of micro tools with internal cooling | l l1 l2 |
246412 WTE, micro chuck, form AD
| Type | 246412 | d2× l mm | d1 mm | d3 mm | l1 mm | l2 mm | Weight kg | Type | 246412 | d2× l mm | d1 mm | d3 mm | l1 mm | l2 mm | Weight kg |
| 0001 | | 10 × 40 | 0�2 - 3�4 | 19 | 73 | 70 | 0�08 | 0009 | | 20 × 132 | 0�2 - 3�4 | 19 | 163 | 160 | 0�36 |
| 0002 | | 10 × 70 | 0�2 - 3�4 | 19 | 103 | 100 | 0�09 | 0011 | | 16 × 60 | 0�2 - 6�4 | 25 | 104 | 100 | 0�30 |
| 0003 | | 10 × 130 | 0�2 - 3�4 | 19 | 163 | 160 | 0�13 | 0012 | | 16 × 110 | 0�2 - 6�4 | 25 | 154 | 150 | 0�50 |
| 0004 | | 16 × 50 | 0�2 - 3�4 | 19 | 83 | 80 | 0�13 | 0013 | | 16 × 160 | 0�2 - 6�4 | 25 | 204 | 200 | 0�70 |
| 0005 | | 16 × 70 | 0�2 - 3�4 | 19 | 103 | 100 | 0�16 | 0014 | | 20 × 60 | 0�2 - 6�4 | 25 | 104 | 100 | 0�40 |
| 0006 | | 16 × 130 | 0�2 - 3�4 | 19 | 163 | 160 | 0�26 | 0015 | | 20 × 110 | 0�2 - 6�4 | 25 | 154 | 150 | 0�60 |
| 0007 | | 20 × 52 | 0�2 - 3�4 | 19 | 83 | 80 | 0�17 | 0016 | | 20 × 100 | 0�2 - 6�4 | 25 | 204 | 200 | 0�80 |
| 0008 | | 20 × 72 | 0�2 - 3�4 | 19 | 103 | 100 | 0�21 | — | — | — | — | — | — | — | — |
